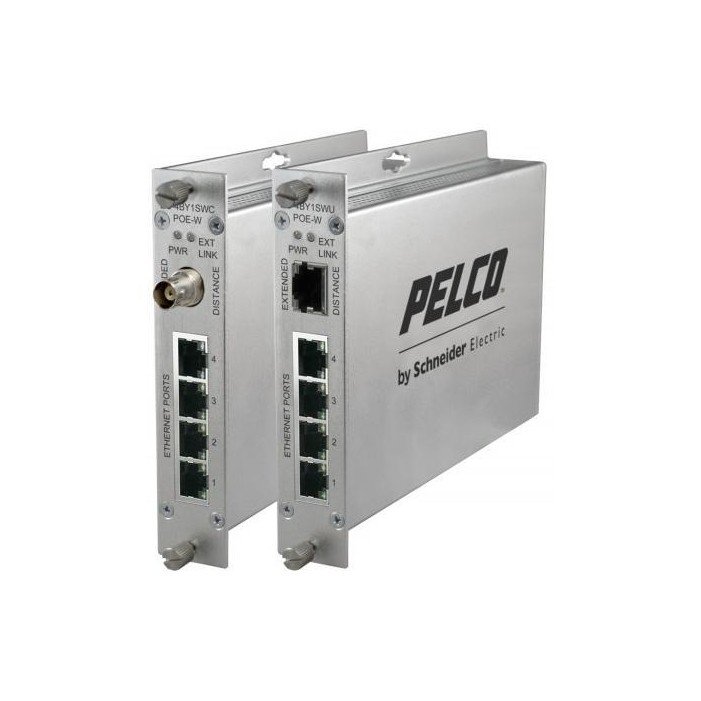

Pelco EC-4BY1SWUPOE-W | EthernetConnect Ethernet Switch
Description
Description
- Manufacturer Part Number: EC-4BY1SWUPOE-W
- Total Number of Network Ports: 4
- Uplink Port: Yes
- Modular: No
- Stack Port: No
- Port/Expansion Slot Details: 4 x Fast Ethernet Network
- Media Type Supported: Twisted Pair
- Ethernet Technology: Fast Ethernet
- Network Technology: 10/100Base-T
- Layer Supported: 2
- Manageable: Yes
- Power Source: Power Supply
- Redundant Power Supply Supported: No
-
Form Factor:
- Wall Mountable
- DIN Rail Mountable
- Rack-mountable
- Height: 1.1"
- Width: 5.3"
- Depth: 6.1"
Overview
The EthernetConnect EC-4BY1SWC/U Series has two models that provide different front panel connectors; the C model for coaxial applications and the U model for UTP applications.
The EthernetConnect EC-4BY1SWC/U Series is an Ethernet switch with uplink management functionality that operates on the Ethernet over copper (EoC). It provides four ports operating at 10/100 Mbps and is designed to combine these four electrical ports into a single electrical extended port that forwards the data to the next network device. The switch does not require programming prior to use.
The EC-4BY1SWC/U Series comes pre-programmed, preventing network video flooding with DIP switch selection of the extended distance port as uplink. Ports 1 through 4 can supply up to 30 W of Power over Ethernet (PoE) and incorporate PoE+ features based on the IEEE802.3at standard. Front panel LED indicators confirm the operating status of the Ethernet switch.
The EC-4BY1SWC/U Series can be either wall-mounted or chassis-mounted for rack installation. All application configurations should be verified at time of ordering to facilitate ease of installation.
Specifications
Specifications
Specifications
| Weight | 2.2 lbs |
|---|---|
| Condition | New |
| UPC | 700880329542 |
| MPN | EC-4BY1SWUPOE-W |
| Product Type | Ethernet Switch |
| Product Family | EthernetConnect EC-4BY1SWC/U |
| Brand | Pelco |
| Form Factor | Rack-mountable |
