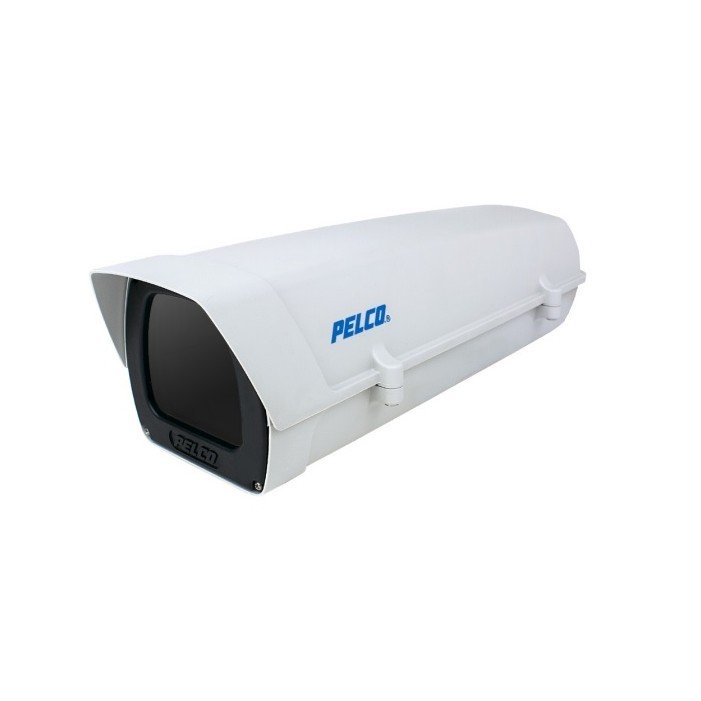

Pelco EH14-3 | General Purpose Camera Housing, 230 V AC Power Supply
Description
Description
- Manufacturer Part Number: EH14-3
- Number of Fans: 1
- Number of Heaters: 1
- Indoor/Outdoor: Indoor/Outdoor
-
Features:
- Dust Resistant
- Impact Resistant
- Moisture Resistant
- Flame Retardant
- UV Resistant
-
Input Voltage:
- 24 V AC
- 230 V AC
- Color: Gray
-
Mount Type:
- Ceiling Mount
- Wall Mount
- Pole Mount
- Pedestal Mount
- Height: 4.5"
- Width: 5.8"
- Depth: 15.8"
- Material: Polycarbonate
- Weight (Approximate): 3.09 lb
Overview
- Temperature Range from -40° to 60°C (-40° to 140°F)
- Anti-UV, Flame-Retardant Polycarbonate Plastic
- IP66 Dust- and Moisture-Resistant
- Suitable for Analog and IP Network Cameras
- Input Power Options: 24 VAC or 230 VAC
- 24 VAC Camera Power Included with Power Supplies
- Advanced Optics for Megapixel Camera Support
- IK10 (20J) Impact Resistance
The EH14 Series enclosure offers two integrated power supply options for 24 VAC power input and 230 VAC power input; both units supply 24 VAC to the camera.
The enclosure is designed to operate in temperatures ranging from – 40° to 60°C (-40° to 140°F). The EH14-2 and EH14-3 models are equipped with a heater/blower.
The injection-molded enclosures are tight-fitting and IP66 rated for protection against dust and moisture. The polycarbonate plastic material is UV protected and flame-retardant.
The EH14 Series enclosure is designed to accommodate analog cameras and IP megapixel cameras.
Specifications
Specifications
Specifications
| Weight | 3.88 lbs |
|---|---|
| Condition | New |
| UPC | 700880327586 |
| MPN | EH14-3 |
| Product Type | Camera Enclosure |
| Indoor/Outdoor | Indoor/Outdoor |
| Color | Gray |
| Brand | Pelco |
