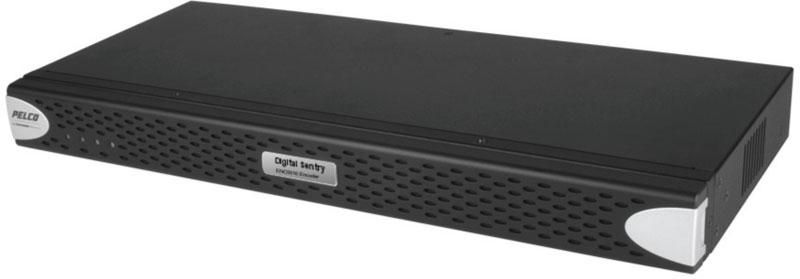

Pelco ENC5516-EUK | H.264 Video Server2 EUK Power Cords
Description
Description
Digital Sentry® ENC5516 video encoder is purpose-built to provide direct-attached support for analog cameras on the high-performance Digital Sentry network video recorder (NVR) platform, and provides unique and affordable support for IP migration. The ENC5516 is a convenient replacement for existing DVRs and lets customers leverage their existing analog wiring infrastructure. Existing analog infrastructure means existing analog wiring structures must be supported. Use the ENC5516 for capturing the BNC connections from other recording systems. Directly attach up to four ENC5516s through supplied cables to one DSSRV to accommodate up to 64 analog cameras. Add the ENC5516 to your DSSRV for an integrated, high-performance IP migration platform.
Pelco - ENC5516-EUK - Features
- Direct-Attached Video Support for Digital Sentry® Network Video Recorder
- Supports 16 Channels per Encoder
- Provides 16 Looping, Auto-Terminating Video Outputs
- H.264 Hardware Compression
- Up to 30/25 (NTSC/PAL) ips at CIF, 2CIF, and D1 per Input
- Frame Rates and Resolutions Configurable per Channel
- 16 Audio Inputs, 16 Alarm Inputs, and 4 Relay Outputs
Specifications
Specifications
Pelco - ENC5516-EUK - Specifications
| SKU | ENC5516-EUK |
|---|---|
| Item Description | H.264 Video Server2 EUK Power Cords |
| Manufacturer | Pelco |
| NDAA | Compliant |
| No Of Channels | 16 Channel |
| Audio Inputs | 16 Audio Input Channels |
| Resolution | 352 X 240, 720 X 240, 720 X 480 |
| Compression Method | H.264 |
| Protocols | ONVIF, Pelco C, Pelco P, Pelco-D |
| COM Ports | RS-422, RS-485 |
| Features | PTZ Support |
| Signal | NTSC/PAL |
| connector | 2 BNC connectors (1 for MUX and 1 for spot monitor); 16 BNC looping video output |
| Frame rate | 30/25 IPS |
