Pelco ES3012-2 | Integrated Positioning System
Description
Description

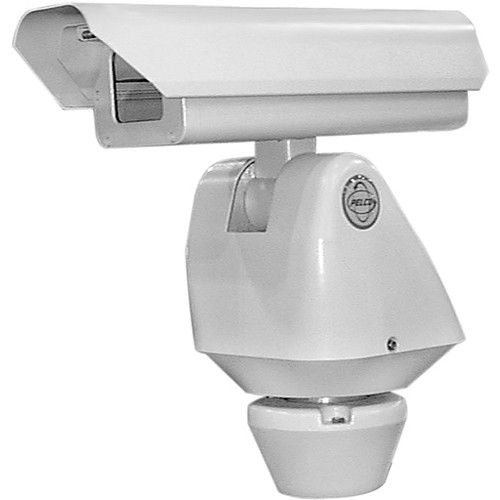

The Pelco ES30122 is an integrated positioning system that combines a pan/tilt, enclosure, and receiver, all in one compact unit.
The lightweight aluminum housing of the unit has an IP66 rating and meets Nema Type 4X standards. This makes the ES3012-2 highly resistant to the elements and makes it suitable for external use. The ES3012-2 can also endure elemental insults while actively moving, and manages a 50 degree/sec pan in gale force winds. The unit performs within a wide temperature range of -40 to 122°F (-40 to 50°C) and is equipped with a sun shroud, window defogger, and a heater.
Zone blanking across 8 programmable zones gives the added convenience of privacy wherever it is required - for example, around password panels. The ES3012-2 is also available with an optional Imagepak upgrade which includes a factory installed camera and lens of your choosing.
Pelco - ES3012-2 - Features
- Integrated receiver, pan/ tilt, and housing with no exposed cabling
- Lightweight aluminum construction
- Meets NEMA Type 4X and IP66 standards
- Operational in 90 mph wind conditions; can withstand wind velocity up to 130 mph
- Zone blanking allows up to 8 zones (programmable in size) to be set to output blank video
- Optional ImagePak available with integrated camera and lens
- Quick and simple electrical connections
- Variable speed advanced motor control technology
- 360° Continuous pan rotation
- Pan preset speed of 100° per second in 50 mph winds and 50° per second in 90 mph winds
- Tilt range of +33 to -83° from horizontal
- Preset positioning
- Designed for minimal maintenance, no gears to adjust
Specifications
Specifications
Pelco - ES3012-2 - Specifications
| SKU | ES3012-2 |
|---|---|
| Item Description | Integrated Positioning System |
| Manufacturer | Pelco |
| NDAA | Compliant |
| Outdoor Use | Yes |
| Power | Output 24vAC |
