Pelco ES3012-5W | Esprit Integrated Positioning System with EWM Wal...
Regular price
$2,664.58
Unit price
Brand: Pelco
|
SKU:
298809
Regular price
$2,664.58
Unit price
Description
Description

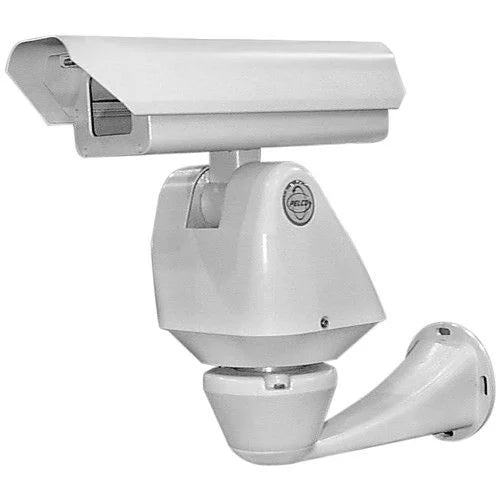

Pelco ES3012-5W | Esprit Integrated Positioning System with EWM Wall Mount, 120VAC
The ES3012-5W from Pelco is an Esprit integrated positioning system ingeniously integrates a pan/tilt, enclosure, and receiver into one compact system that is easy to install. On-screen, user-friendly menus also make the system easy to program and operate.
The ES3012 system (standard or ImagePak) has a built-in heater, window defroster/defogger, sun shroud, and insulation blanket. The system is available with an input voltage of 24 VAC or with a selectable power source of 120/230 VAC.
Pelco - ES3012-5W - Features
- Integrated Receiver, Pan/ Tilt, and Housing with No Exposed Cabling
- Optional ImagePak Integrated Optics Package
- Quick and Simple Electrical Connections
- Variable Speed – Advanced Motor Control Technology
- 360° Continuous Pan Rotation
- Zone Blanking – Allows up to eight zones (programmable in size) to be set to output blank video
- Operational in 90 mph Wind Conditions; Can Withstand Wind Velocity Up to 130 mph
- Pan Preset Speed of 100° Per Second in 50 mph Winds and 50° Per Second in 90 mph Winds
- Tilt Range of +33° to -83° from Horizontal
- Preset Positioning
- Designed for Minimal Maintenance, No Gears to Adjust
- Lightweight Aluminum Construction
- Meets NEMA Type 4X and IP66 Standards
Specifications
Specifications
Pelco - ES3012-5W - Specifications
| SKU | ES3012-5W |
|---|---|
| Item Description | Esprit Integrated Positioning System with EWM Wall Mount, 120VAC |
| Manufacturer | Pelco |
| NDAA | Compliant |
| Product Type | Indoor, Outdoor, Preset Positioning |
| Power Requirement | 120VAC |
