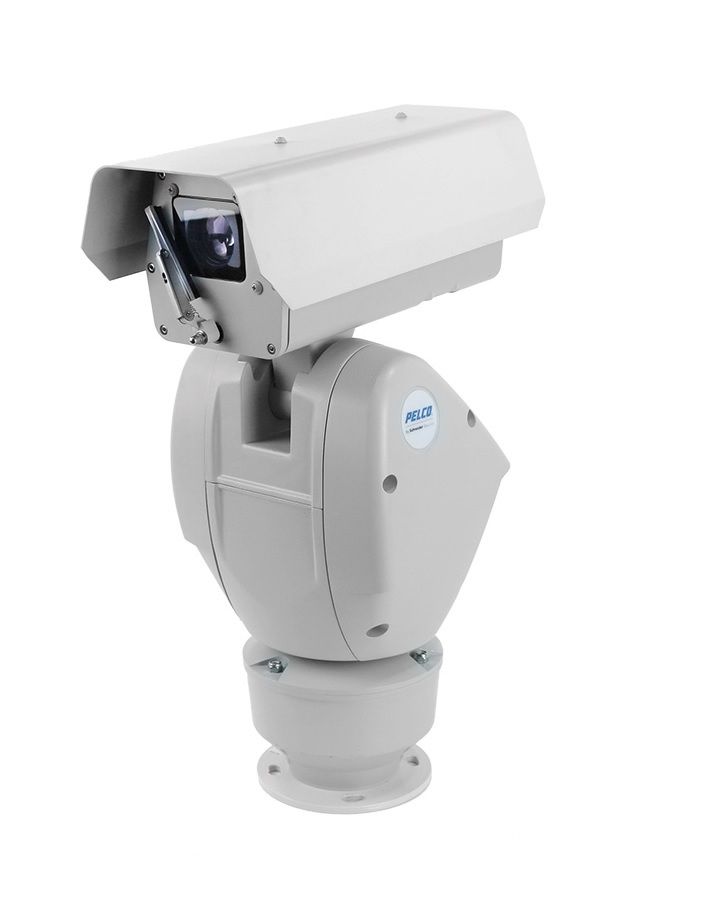

Pelco ES6230-15 | 2 Megapixel Network Indoor/Outdoor PTZ Camera with Wiper, 30X
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Pelco ES6230-15 | 2 Megapixel Network Indoor/Outdoor PTZ Camera wit...
Description
Description
The ES6230-15 is an Esprit Enhanced provides the total package of impressive image quality, valuable software features, and time-tested pan/tilt performance suitable for any installation environment. Esprit Enhanced has long provided a Full HD 1080p 30x optical zoom camera but with Pelco's latest product evolution a powerful new SureVision 3.0 enabled camera is now available featuring 130dB of True Wide Dynamic Range and low light performance up to twenty times better than past Esprit model. The new SureVision 3.0 camera is available in either a standard or pressurized 30x optical zoom module that delivers market-leading image quality for even the toughest outdoor environments. Esprit Enhanced has historically packed in many features that enhance the total value of the system, and with the new SureVision 3.0 cameras, even more, value has been added. Since its inception, Esprit Enhanced has had a full suite of built-in video analytics, 32 window blanking privacy zones, and electronic image stabilization.
Pelco - ES6230-15 - Features
- Surevision 3.0 Technology, Including:
- – 130dB Wide Dynamic Range (WDR)
- – Advanced Low Light Down to 0.03 LUX, Anti-Bloom Technology 3D Noise Filtering, Enhanced Tone Mapping
- Up to Full HD 1080p and up to 60 Images per Second
- Full Suite of Built-In Analytics Including Auto Tracker, Adaptive Motion Detection, Abandoned Object, and More
- Defog Mode Provides Three Levels of Fog Removal Within the Image for Improved Image Quality During Bad Weather Conditions
- Vivid Mode Can be Turned On/Off to Drastically Improve the Image Contrast and Color Saturation
- Electronic Image Stabilization (EIS)
- Dual Stream H.264 IP Video with Smart Compression
- 16 Preset Tours, 256 Presets, 32 Window Blanks, 8 Patterns, 8 Scans
- Integrated Window Wiper with Configurable Delay and Shut-Off (ES6230-1x Models)
- ONVIF Profile S, Profile G, and Profile Q Conformant
- 360° Continuous Pan Rotation at 140° per Second
- 2 SFP Ports
Specifications
Specifications
Pelco - ES6230-15 - Specifications
| SKU | es6230-15 |
|---|---|
| Item Description | 2 Megapixel Network Indoor/Outdoor PTZ Camera with Wiper, 30X |
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Heater & Fan, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Pelco |
| NDAA | Compliant |
| Camera Signal | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 2 Megapixel |
| Lens Type | Motorized Zoom |
| Lens Size | 30X |
| Mount Type | Bracket Required |
| Compression Method | H.264, M-JPEG |
| Durability | Indoor, Weather Resistant |
| Voltage | 100-240vAC |
| Electronic Shutter | 1/1 ~ 1/10,000 sec |
| Image Device | 1/2.8-inch Type Exmor CMOS Sensor |
| Minimum Scene Illumination | Light Sensitivity: Color (33 ms): 0.03 lux, Color (250 ms): 0.008 lux, Mono (33 ms): 0.004 lux, Mono (250 ms): 0.001 lux |
| Operating Temperature | –20° to 60°C (–4° to 140°F) |
| OSD Menu | English, Spanish, Portuguese, Italian, German, French, Russian, Turkish, Arabic, Chinese, and Korean |
| Power Consumption | 72 VA |
| Protocols | TCP/IP, UDP/IP (Unicast, Multicast IGMP), UPnP, DNS, DHCP, RTP, RTSP, NTP, IPv4, IPv6*, SNMP v2c/v3, QoS, HTTP, HTTPS, SSH, SSL, SMTP, FTP, and 802.1x (EAP), NTCIP 1205 |
| S/N Ratio | >50dB |
| Weatherproof | IP66 |
| Digital Noise Reduction | 3D |
| Processor | Intel® Core™ i3 Processor, 2.4 GHz |
| Angle of View | 63.7°(wide) - 2.3° (tele) |
| Rotation Angle | 140° |
| Motion Detection Tracking | Simple motion detection and camera sabotage |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Heater & Fan | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
