Description
Description

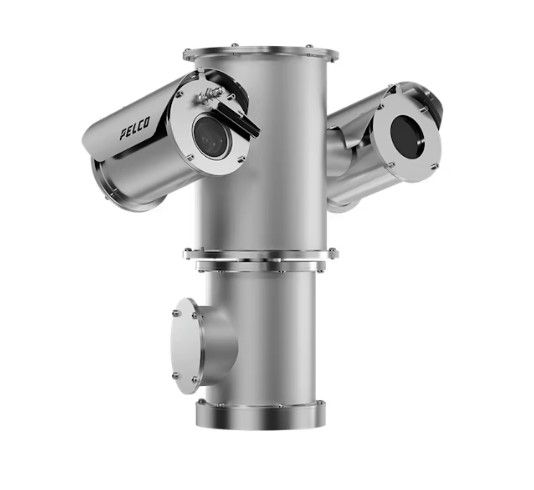

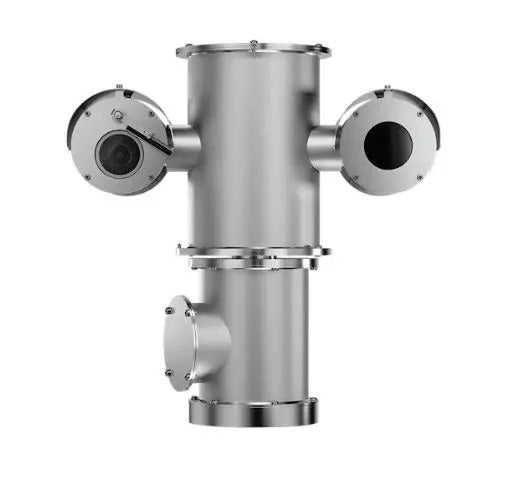

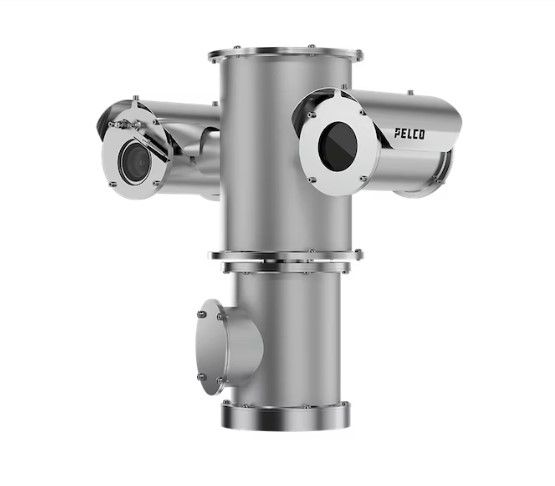

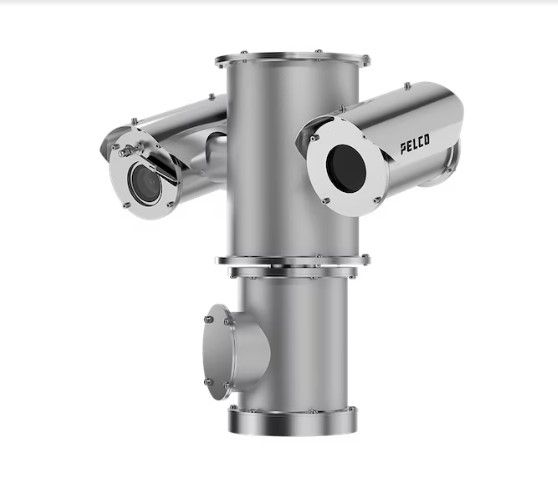

The Esprit Anti-Corrosion Bispectral PTZ is a corrosion-resistant camera that combines visual and thermal imaging into a single device to enhance operational awareness. The thermal camera can accurately detect a target in most environmental conditions, while the visual camera achieves greater recognition and identification. Designed with heavy-duty stainless steel, the Esprit Anti-Corrosion Bispectral PTZ is made for rugged environments and offers maximum resistance against corrosion, making it an ideal choice for cargo ships, ports, roadways and other highly corrosive industries.
Pelco - ESCE12X40Q6RLU - Features
- Visual Camera Get clear images in most weather and lighting conditions with 2 MP resolution, LowLight Technology and True Wide Dynamic Range. Get a complete picture with the smooth movement of the PTZ and see afar with long-range zoom.
- Lloyd'S Register Marine Obtained Lloyd's Register Marine Type Approval for the maritime and shipping sector.
- Ready for Harsh Conditions Safe within a wide temperature range, from -40°C to +65°C (-40°F to 149°F), plus IP66/67/68/69 weather rating for maximum durability in tough environments.
- Pelco Smart Analytics Powered by Motorola Solutions. Make quicker, decisive responses with enhanced object detection and classification and leverage your PTZ's full potential with auto-tracking.
- Thermal Camera Detect heat signatures from a long distance with various resolutions, including QVGA and VGA, and choose from a variety of field-of-view options to cover wide areas.
- Superior Detection Never miss a single detail with a camera that provides a thermal and a visual vision for better decision-making and reduced false alarm rates.
- Easy Installation Simplify installation and ensure cost-efficiency by installing only one camera instead of two. Take advantage of flexible mounting options to suit your facility's needs, particularly in remote and challenging sites.
- Onvif® Conformant ONVIF Profile S, G, T and M conformance for easy integration with leading video management software to maximize existing investments. Up to 4 simultaneous streams in a single device
- Visual camera: 2 MP resolution and 40x optical zoom
- Thermal camera: VGA, QVGA and multiple fixed lens options
- Flexible mounting options with multiple accessories
- H.264, H.265, Motion JPEG with Pelco Smart Compression
Specifications
Specifications
Pelco - ESCE12X40Q6RLU - Specifications
| Manufacturer Part Number | ESCE1-2X40Q6-RLU |
|---|---|
| Functions | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Flickerless, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Pelco |
| Camera Signal | Network IP |
| Connection Type | Wired |
| IR Distance | Non Infrared |
| Resolution | 320 X 256 |
| Lens Type | Motorized Zoom |
| Lens Size | 40X |
| Mount Type | Bracket Required |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Dimensions (W x H) | 460 mm x 240 mm x 480 mm; 18.1" x 9.5" x 18.9" |
| Image Device | 320 x 256 Uncooled VOx Microbolometer |
| Operating Humidity | 5% - 95% non-condensing |
| Operating Temperature | -40 °C to +70 °C (-40 °F to 158 °F) |
| Power Consumption | 120W max. 35W, P&T static, heating switched off |
| Protocols | IPv6, IPv4, HTTP, HTTPS, SOAP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMPv2, ICMP, DHCP, Zeroconf, ARP, HSTS |
| Weatherproof | IP66/IP67/IP68/IP69 |
| Digital Noise Reduction | 3D |
| Angle of View | Horizontal field of view: 34° , Vertical field of view: 27.2° |
