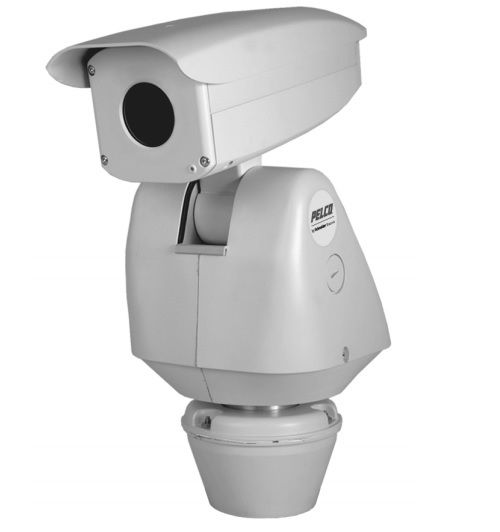

Pelco ESTI3100-2W-X | 384x288 Indoor/Outdoor Network Thermal Imaging PTZ Camera, PAL, 100mm Lens

The ESTI3100-2W-X from Pelco is an advanced thermal imaging pan/tilt system designed for easy integration into any new or existing video security application. The system is designed to provide detection, recognition, and identification of people and vehicles in any lighting condition, including complete darkness. The ESTI3100-2W-X features IP or analog outputs in the same package and an integrated environmentally protected IP66 rated enclosure with Esprit pan/tilt positioner, which can be controlled using IP or analog systems that use Coaxitron or RS-422 Pelco D and Pelco P protocols. Additionally, when used in an IP system, the ESTI3100-2W-X features a full suite of designed-for-thermal analytics.

The ESTI3100-2W-X provides outstanding sensitivity below 50 mK at f/1.0. It is capable of multiple display formats, including white hot, black hot, and color signatures. The ESTI3100-2W-X is available with effective deployment in a wide range of applications.

In IP installations, the ESTI3100-2W-X can support two simultaneous video streams. The two streams can be compressed in MJPEG and H.264 formats across several resolution configurations. The streams can be configured to a variety of frame rates, bit rates, and group of pictures (GOP) structures for additional bandwidth administration. When used in analog installations, the ESTI3100-2W-X supports camera control and limited camera setup using Coaxitron, Pelco P, and Pelco D protocols.

The ESTI3100-2W-X provides variable pan and tilt speeds ranging from 0.1 to 40 degrees per second in manual pan mode and 0.1 to 20 degrees per second in manual tilt mode. Pan preset and turbo speeds are 100 degrees per second in wind speeds of 50 mph and 50 degrees per second in the 90 mph wind-speed profile. Tilt preset speed is 30 degrees per second. The ESTI3100-2W-X is capable of 360 degrees of continuous pan rotation. The tilt range allows for horizontal viewing of +33 to –83 degrees. Preset positions have a preset accuracy of one-quarter degree.

The powder-coated aluminum enclosure makes the ESTI3100-2W-X ideal for either indoor or outdoor applications. The system has a sustained operating temperature range of –40° to 50°C (–40° to 122°F). A built-in heater/defroster and sun shroud are standard features on the ESTI3100-2W-X.
