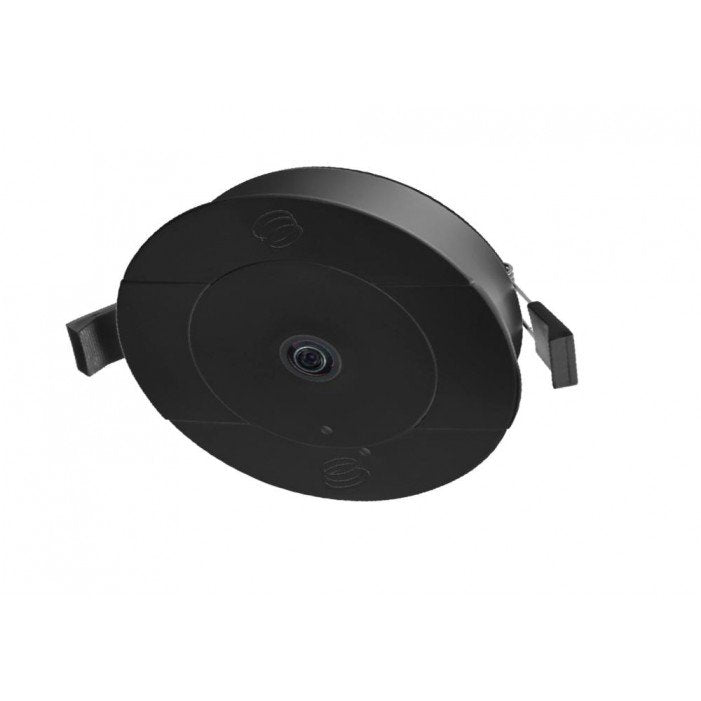

Pelco EVO-05LSD | Evolution 05 5 Megapixel Network Camera

Overview

The next step in 360° total situational awareness

5 MP sensor and no moving parts

• Constant 360° surveillance with no blind spots
• No moving parts, no maintenance and silent operation
• Up to 30 fps video stream at 1 MP and ? MP
• 0.2 lux minimum illumination and electronic WDR
• PoE powered
• 3-years warranty

Advanced features

• microSD card slot for local event recording
• Configurable privacy regions
• Polygonal Video Motion Detection regions

A truly discreet installation

• Simple and fast installation from below the ceiling line
• Ultra low profile, blends into the installation environment
• UL2043 rated for installation in air handling / plenum spaces
• Spray-paint to match your environment
• 108 mm (4.25 in.) drilling hole
• Fits up to 25 mm (1 in.) panel thickness

Extensive VMS/NVR platform integration with Oncam SDK

• Market leading Oncam 3D dewarping software
• Full live and retrospective dewarping available
• Camera features are accessible through VMS platforms
• Simultaneous multiple video streams
• 10x digital zoom capability through client-side dewarping H.264 / MJPEG streaming with multiple quality levels
• Optimizes bandwidth and storage utilization
• Intuitive web-based interface for viewing and configuration
• Supported by major VMS / NVR systems including and VideoXpert (version 1.6 or later) and Digital Sentry (version 7.8.90 or later)
• ONVIF profile S conformant
