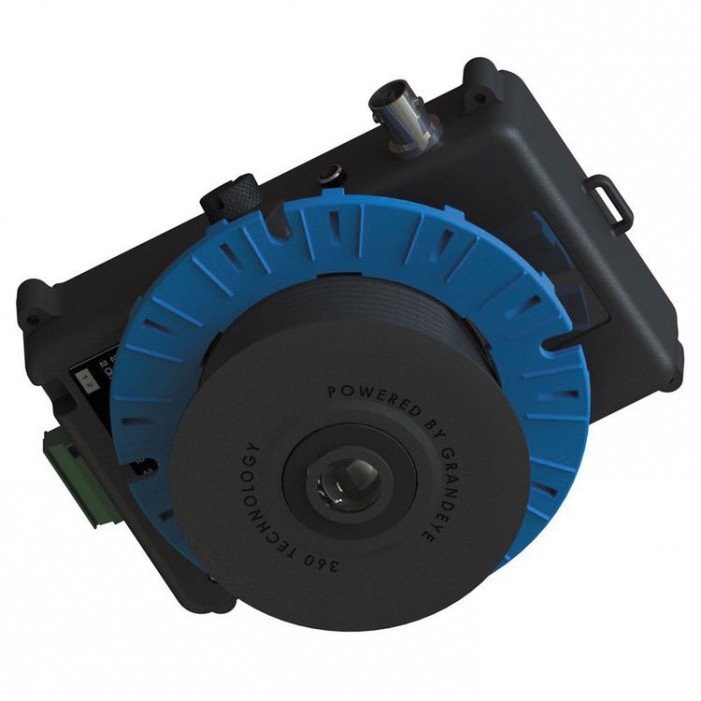

Pelco EVO-05NCD | Evolution 5 Megapixel Network Camera

Overview
5-megapixel sensor and no moving parts

• Constant 360° surveillance; no blind spots
• Silent operation as there are no mechanical parts wear and tear
• Light weight enclosure that can be completely concealed behind ceilings or walls voids
• False wall or ceiling thickness of between 3mm (1/4") and 25mm (1")

A truly covert installation with the lowest profile available

• Fully supports IEEE802.3af Class 2 Power over Ethernet (PoE)
• Quick and easy installation
• Professional indoor enclosure
• Pleasing aesthetics in either black or white finish
• Minimum illumination 0.2 lux, providing clarity in low lights
• Convenient flush-mounting enclosure
• Suitable for ceiling, wall or table mounted applications

Onboard SD card and advanced event management

• Onboard SD Card for future local recording feature and advanced event management
• Configurable privacy regions
• Video Motion Detection within defined areas of interest
• Local alarm digital input and output
• Audio microphone input

Fully integrated with multiple VMS platforms to provide live and retrospective dewarping

• Utilising the market leading Oncam Grandeye – Grandeye 3D dewarping software
• Camera features are accessible via VMS platforms
• Optimises bandwidth and storage utilisation
• Simultaneous multiple video streams
• Video streams in multiple resolutions from 528×480 to 2144×1944
• 10 fps typical for full resolution and up to 15 fps for all other resolutions
• H.264/MJPEG streaming with multiple quality levels
• Configurable password protection
• Intuitive web-based interface for viewing and configuration
• Integrated with Digital Sentry version 7.5 and other leading VMS platforms
