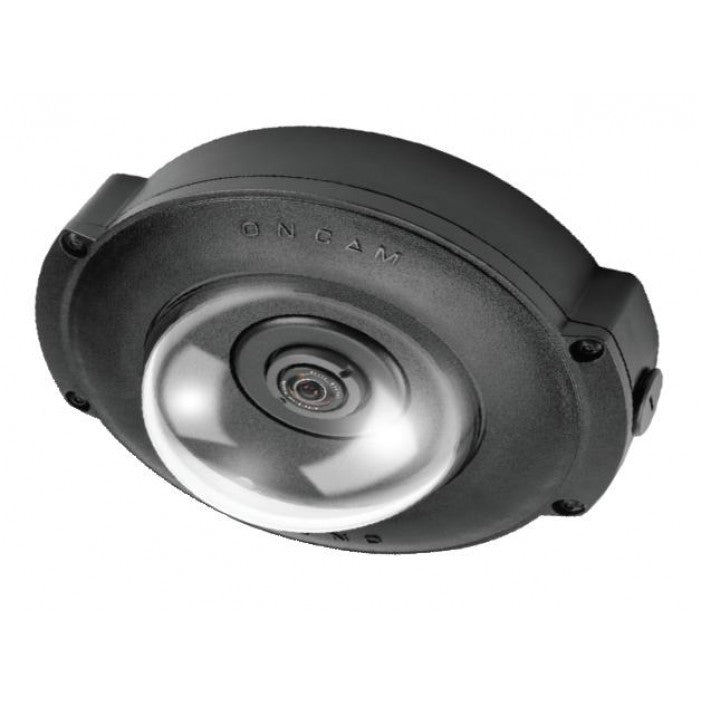

Pelco EVO-05NND | Evolution 5 Megapixel Network Camera, Dome
Description
Description
- Manufacturer Part Number: EVO-05NND
- Image Sensor Type: CMOS
- Minimum Illumination: 0.2 lux
- Color Supported: Color
- Effective Camera Resolution: 5 Megapixel
-
Video Formats:
- H.264
- MJPEG
- Maximum Video Resolution: 2144 x 1944
- Video Signal Format: NTSC
- Maximum Focal Length: 1.60 mm
- Maximum Aperture: f/2
- Connectivity Technology: Wired
- Network (RJ-45): Yes
-
Mount Type:
- Wall Mount
- Ceiling Mount
- Pole Mount
- Pendant Mount
- Form Factor: Dome
- Height: 3.9"
- Width: 6.2"
- Length: 7"
- Weight (Approximate): 2.03 lb
- Indoor/Outdoor: Outdoor
- Impact Protection Rating: IK10
- Ingress Protection Rating: IP66
- Limited Warranty: 2 Year
Overview
Evolution – a 360-degree surveillance outdoor camera with award-winning Oncam Grandeye technology onboard
The Evolution 360-Degree Outdoor Dome Camera is an IP camera with a 5-megapixel sensor and no moving parts. The unit is designed for quick and easy installations outdoors where a professional and rugged enclosure that can withstand harsh requirements is required. The Evolution Outdoor Camera is vandal resistant and fully supports IEEE802.3af Class 2 Power-over-Ethernet for installation convenience.
The Evolution Outdoor Camera provides total situational awareness over a 360-degree field of view, generating a number of video streams at a choice of resolutions as well as configurable privacy zones and video motion detection within defined areas of interest.
The Evolution Outdoor Camera is suitable for ceiling, wall or table mounted applications and provides pleasing aesthetics in either black or white finish. A range of mounting accessories allows for easy ceiling, wall, pole and pendant mounting options.
Specifications
Specifications
Specifications
| Weight | 3.25 lbs |
|---|---|
| Condition | New |
| UPC | 700880329931 |
| MPN | EVO-05NND |
| Product Type | Network Camera |
| Maximum Video | 2144 x 1944 |
| Maximum Focal Length | 1.60 mm |
| Image Sensor Type | CMOS |
| Network (RJ-45) | Yes |
| Product Family | Evolution |
| Indoor/Outdoor | Outdoor |
| Impact Protection | IK10 |
| Ingress Protection | IP66 |
| Color | Black |
| Color Supported | Color |
| Connectivity | Wired |
| Brand | Pelco |
| Form Factor | Dome |
