Pelco EXP2230-66 | 2 Megapixel Network Outdoor PTZ Camera with 30X ...
Description
Description

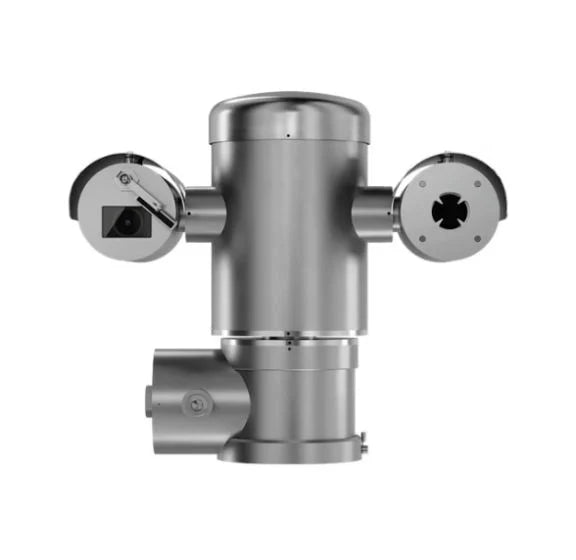

The ExSite Enhanced Bispectral PTZ 2 Series is an explosion-proof camera that combines visual and thermal imaging into a single device to optimize contextual insight. The thermal camera can accurately detect a target in most environmental conditions, while the visual camera achieves greater recognition and identification. Built with durable stainless steel, this camera is tailored for hazardous and corrosive industries, such as onshore/offshore oil and gas, manufacturing, chemical and more. Hazardous applications pose a unique set of challenges. Superior visibility and situational awareness is paramount when posed with varying environmental and lighting conditions.
Pelco - EXP2230-66 - Features
- Visual Camera
- Get clear images in most weather and lighting conditions with 2 MP resolution, LowLight Technology and True Wide Dynamic Range. Get a complete picture with the smooth movement of the PTZ and see afar with long-range zoom.
- Explosion-Proof
- The heavy-duty housing meets stringent explosion-proof and dust-ignition-proof requirements while complying with international standards (UL, CSA, ATEX, IECEx, EACEx, INMETRO, KCs, UKCA).
- Ready for Harsh Conditions
- Safe within a wide temperature range, from -40°C to +60°C (-40°F to 140°F), plus Type 4X/6P and IP66/67/68/69 weather rating for maximum durability in tough environments.
- Pelco Smart Analytics
- Powered by Motorola Solutions. Make quicker, decisive responses with enhanced object detection and classification and leverage your PTZ’s full potential with auto-tracking.
- Thermal Camera
- Detect heat signatures from a long distance with various resolutions, including QVGA and VGA, and choose from a variety of field-of-view options to cover wide areas.
- Superior Detection
- Never miss a single detail with a camera that provides a thermal and a visual vision for better decision-making and reduced false alarm rates.
- Easy Installation
- Simplify installation and ensure cost-efficiency by installing only one camera instead of two. Take advantage of flexible mounting options to suit your facility’s needs, particularly in remote and challenging sites.
- Onvif® Conformant
- ONVIF Profile S, G, T and M conformance for easy integration with leading video management software to maximize existing investments.
- Global explosion-proof certifications
- Up to 4 simultaneous streams in a single device
- Visual camera: 2 MP resolution and 30x optical zoom
- Thermal camera: VGA, QVGA and multiple fixed lens options
- Flexible mounting options with multiple accessorie
Specifications
Specifications
Pelco - EXP2230-66 - Specifications
| SKU | EXP2230-66 |
|---|---|
| Item Description | 2 Megapixel Network Outdoor PTZ Camera with 30X Lens |
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Flickerless, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Pelco |
| Camera Signal | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 2 Megapixel |
| Lens Type | Motorized Zoom |
| Lens Size | 30X |
| Mount Type | Bracket Required |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 220vAC |
| Dimensions (W x H) | 453 mm x 232 mm x 398 mm; 17.84" x 9.13" x 15.7" |
| Electronic Shutter | Automatic, Manual (1/1 to 1/10,000 sec) |
| Image Device | 1/3" progressive scan CMOS |
| Minimum Scene Illumination | 0.05 lux (1/30s, 60dB) in color mode; 0.005 lux (1/30s, 60dB) in monochrome |
| Operating Humidity | 5% - 95% non-condensing |
| Operating Temperature | -40 °C to +55 °C (-40 °F to 131 °F) |
| Power Consumption | 120 W |
| Privacy Zone | 3D, up to 64 zones |
| Protocols | IPv6, IPv4, HTTP, HTTPS, SOAP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, Zeroconf, ARP, SNMP v2c,SNMP v3 |
| S/N Ratio | More than 50 dB |
| Weatherproof | IP66/IP67/IP68/IP69 |
| Digital Noise Reduction | 3D |
| Angle of View | Horizontal (16:9) 2.34° - 65.1°, Vertical (16:9) 1.36° - 38.4° |
| Motion Detection Tracking | Pixel motion: Selectable sensitivity and threshold. Classified object detection |
| Back Light Compensation | On/Off |
| Automatic White Balance | Automatic, Manual |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
