Pelco FD2-V10-6X | 650 TVL Analog Indoor Dome Camera, 2.8-10.5mm Le...
Description
Description

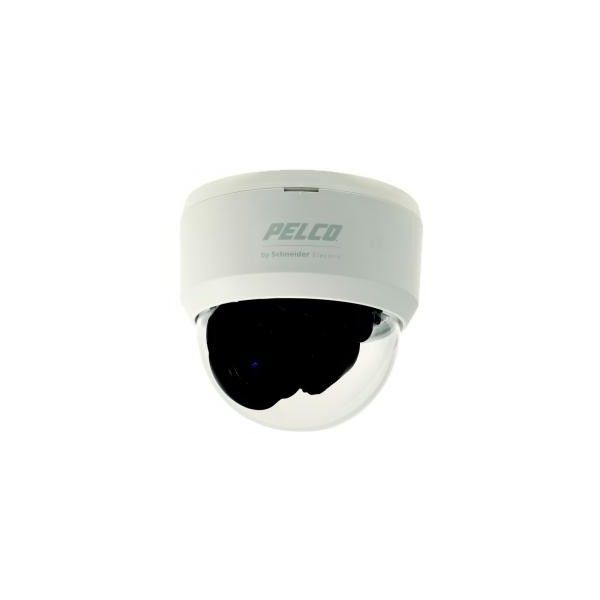

The FD2-V10-6X from Pelco is general purpose indoor varifocal dome camera. It is designed to provide superior picture quality over a widerange of conditions. The camera’s attractive size, combined with its numerous features, makes it the ideal camera for most indoorapplications.
The FD2-V10-6X from Pelco dome camera integrates a camera and lens package into a small, versatile indoor enclosure that can be mounteddirectly to a ceiling or wall. The FD2-DV10-6X from Pelco features a 3-axis camera and lens positioning system that is capable of a widevariety of pan and tilt angles.
Pelco - FD2-V10-6X - Features
- 650 TV Lines
- Sony 1/3-Inch EXview HAD CCD II Imager
- Digital Signal Processing (DSP)
- Wide Dynamic Range (WDR) and Day/Night with Digital Slow Shutter (DSS) High Resolution
- Color High Resolution
- Varifocal Lens
- Autosensing Power; 18 to 32 VAC/12 VDC with Internal Synchronization
- Shipped Completely Assembled, Easy to Install
Specifications
Specifications
Pelco - FD2-V10-6X - Specifications
| SKU | FD2-V10-6X |
|---|---|
| Item Description | 650 TVL Analog Indoor Dome Camera, 2.8-10.5mm Lens, PAL |
| Features | Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Motion Detection Tracking, Privacy Masking, Wide Dynamic Range |
| Manufacturer | Pelco |
| NDAA | Compliant |
| Camera Signal | Analog |
| Resolution | 650 TVL |
| Sensor Option | 1/3" CCD |
| Lens Type | Varifocal |
| Lens Size | 2.8-10.5mm |
| Infrared Distance | Non Infrared |
| Durability | Indoor |
| Mount Type | Ceiling, Wall |
| Voltage | 12vDC, 18-32vAC |
| Electronic Shutter | Auto/Manual 1/60 ~ 1/10,000 sec , Auto/Manual 1/50 ~ 1/10,000 sec |
| Image Device | 1/3-Inch EXview HAD CCD II |
| Image Pixels-Effective | 976 (H) x 582 (V) |
| Minimum Scene Illumination | f/1.2; 2,850°K; 30 IRE Color 0.1 lux Mono 0.1 lux |
| Operating Humidity | 20% to 80%, noncondensing |
| Operating Temperature | –10° to 50°C (14° to 122°F) |
| Power Consumption | 2.5 W |
| Privacy Zone | 8 areas |
| S/N Ratio | 48 dB (>52 dB by parameter adjustment) |
| Scanning System | 625 lines, 2:1 interlace |
| Video Output | 1.0 Vp-p , NTSC/PAL composite, 75 ohms , BNC connector |
| Synchronization | Internal |
| Digital Noise Reduction | 2D |
| Angle of View | 73.2° at 2.8 mm wide zoom; 20.6° at 10.5 mm telephoto zoom |
| Rotation Angle | ±180° |
| Automatic White Balance | ATW/Manual/Push/Push Lock/User1/User2/Anti CR |
| Motion Detection | 4 areas |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Wide Dynamic Range | Yes |
| Privacy Masking | Yes |
| Auto Gain Control | Yes |
| Motion Detection Tracking | Yes |
