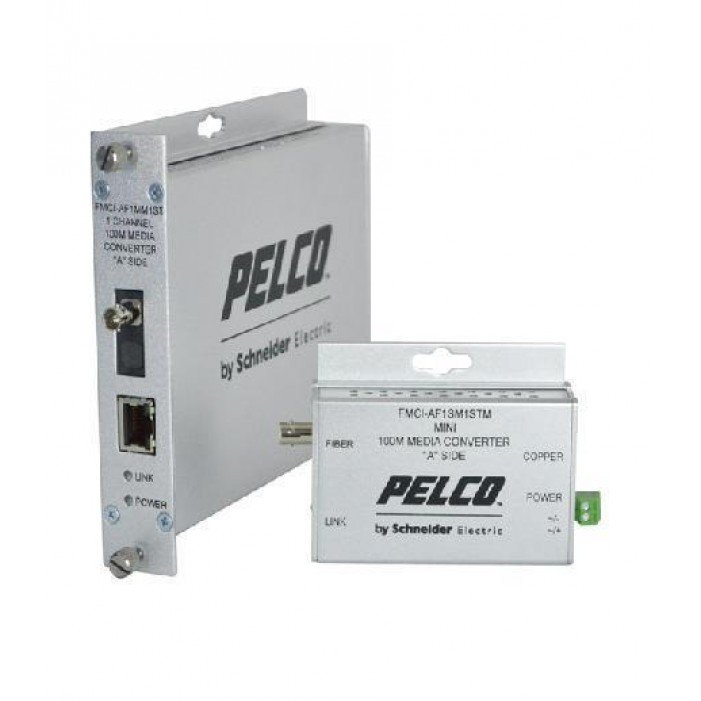

Pelco FMCI-BF1MM1ST | Transceiver/Media Converter
Description
Description
- Manufacturer Part Number: FMCI-BF1MM1ST
- Total Number of Ports: 2
- Network (RJ-45): Yes
- Number of Network (RJ-45) Ports: 1
- Number of ST Ports: 1
- ST Port Type: Duplex
-
Media Type Supported:
- Optical Fiber
- Twisted Pair
- Fiber Mode Supported: Multi-mode
-
Fiber Optic Wavelength:
- 1310 nm
- 1550 nm
- Maximum Distance Supported: 1.86 Mile
- Fiber Optic Cable Standard: 62.5/125 µm
- Ethernet Technology: Fast Ethernet
-
Network Technology:
- 10/100Base-TX
- 100Base-FX
- Power Source: Power Supply
-
Form Factor:
- Rack-mountable
- Surface-mountable
- Rail-mountable
- Height: 1.1"
- Width: 5.3"
- Depth: 6.1"
- Weight (Approximate): 15.87 oz
- Environmentally Friendly: Yes
- Environmental Certification: RoHS
Overview
FMCI Series Ethernet media converters are designed to transmit and receive 10/100 Mbps data over multimode or single-mode optical fiber. The electrical interface will autonegotiate to a 10 Mbps or 100 Mbps Ethernet rate without any adjustments. The optical interface operates at a 100 Mbps Ethernet rate.
FMCI Series media converters are environmentally hardened to operate in extreme temperatures. LED indicators are provided for rapidly ascertaining equipment operating status and monitoring critical operating parameters.
Standard size FMCI Series units can be either surface- or rack-mounted; mini units are surface-mount only. Either type can be DIN-rail mounted by the addition of an adapter plate.
Specifications
Specifications
Specifications
| Weight | 1.1 lbs |
|---|---|
| Condition | New |
| UPC | 700880322819 |
| MPN | FMCI-BF1MM1ST |
| Product Type | Transceiver/Media Converter |
| Network (RJ-45) | Yes |
| Product Family | FMCI |
| Brand | Pelco |
| Form Factor | Rail-mountable |
