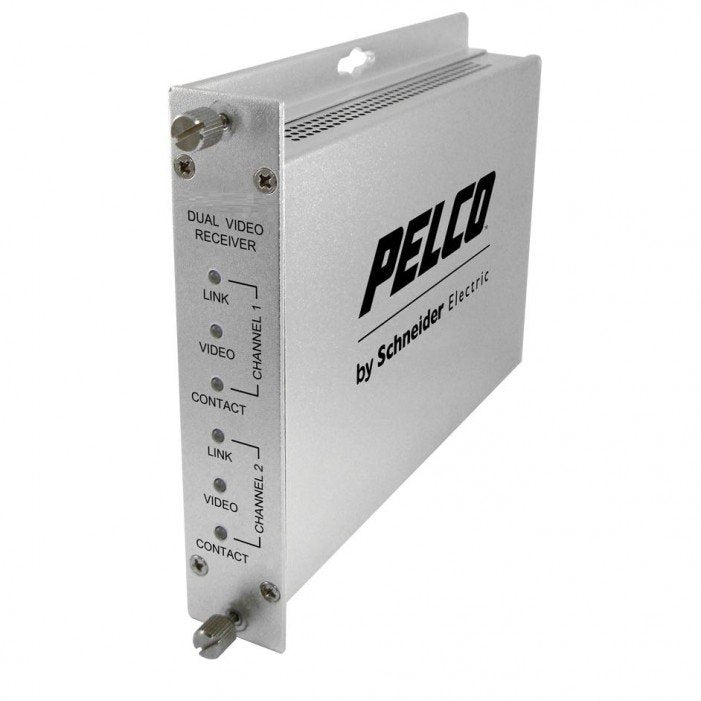

Pelco FRV20M2ST | Video Extender Receiver
Description
Description
- Manufacturer Part Number: FRV20M2ST
- Connectivity Technology: Wired
- Number of Output Devices Supported: 2
- Maximum Operating Distance: 9842.52 ft
- Number of ST Ports: 2
-
Media Type Supported:
- Coaxial
- Optical Fiber
- Receiver Height: 1.10"
- Receiver Width: 5.30"
- Receiver Depth: 6.10"
-
Form Factor:
- Standalone
- Rack-mountable
- Desktop
- Wall Mountable
- Receiver Weight (Approximate): 13.40 oz
Overview
The FRV20 fiber receiver accepts two channels of video over two optical fibers. The FRV20 receiver is compatib le with the FTV10 and FTV10M transmitters. Each of the two transmitters can send a single independent video channel to one FRV20 receiver.
The FRV20 receiver is available in multimode and single-mode versions. When using single-mode fiber, the FRV20 receiver and compatible transmitter offer an optical power budget of 23 dB and provide a transmission distance of up to 69 km (42.9 mi) .
The FRV20 plug-and-play design ensure s ease of installation by requiring no electrical or optical adjustments. Modular in design, FRV20 units can be rack-mounted using the EURACK/USRACK chassis, or stand-alone modules can be placed on a desktop or mounted to a wall (wall mount kit not required).
For stand-alone and wall mount installations, external power is required for the FRV20 units. The units can be powered with the recommended FEXTPS fiber external power supply.
Specifications
Specifications
Specifications
| Weight | 1.8 lbs |
|---|---|
| Condition | New |
| UPC | 700880297957 |
| MPN | FRV20M2ST |
| Product Type | Video Extender Receiver |
| Maximum Operating | 9842.52 ft |
| Connectivity | Wired |
| Brand | Pelco |
| Form Factor | Wall Mountable |
