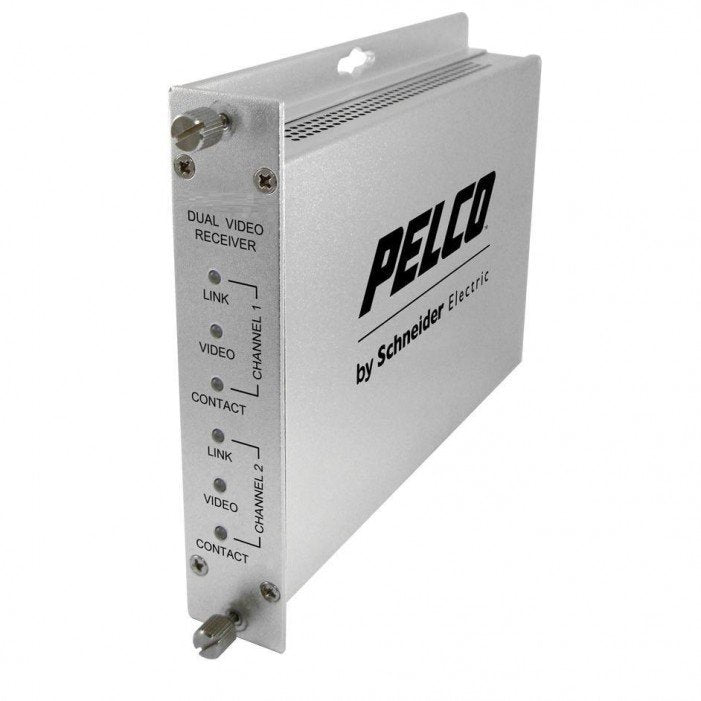

Pelco FRV20S2ST | Video Extender Receiver

Overview
The FRV20 fiber receiver accepts two channels of video over two optical fibers. The FRV20 receiver is compatible with the FTV10 and FTV10M transmitters. Each of the two transmitters can send a single independent video channel to one FRV20 receiver.

The FRV20 receiver is available in multimode and single-mode versions. When using single-mode fiber, the FRV20 receiver and compatible transmitter offer an optical power budget of 23 dB and provide a transmission distance of up to 69 km (42.9 mi).

The FRV20 plug-and-play design ensures ease of installation by requiring no electrical or optical adjustments. Modular in design, FRV20 units can be rack-mounted using the EURACK/USRACK chassis, or stand-alone modules can be placed on a desktop or mounted to a wall (wall mount kit not required).

For stand-alone and wall mount installations, external power is required for the FRV20 units. The units can be powered with the recommended FEXTPS fiber external power supply.he FRV20 fiber receiver accepts two channels of video over two optical fibers. The FRV20 receiver is compatible with the FTV10 and FTV10M transmitters. Each of the two transmitters can send a single independent video channel to one FRV20 receiver.
