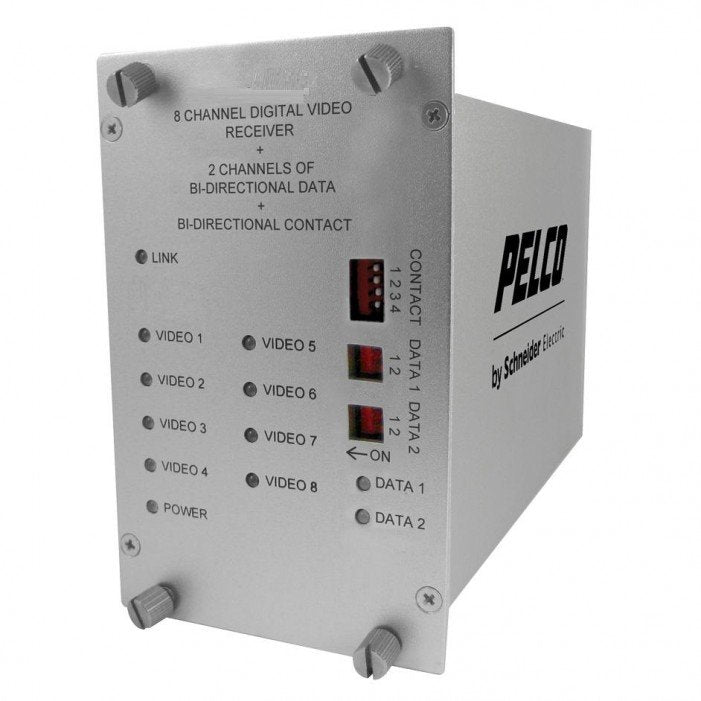

Pelco FRV80D2M1ST | Video Extender Receiver
Description
Description
- Manufacturer Part Number: FRV80D2M1ST
- Connectivity Technology: Wired
- Number of Output Devices Supported: 8
- Maximum Operating Distance: 6561.68 ft
- Serial Port: Yes
- Number of ST Ports: 8
-
Media Type Supported:
- Coaxial
- Optical Fiber
- Receiver Height: 3.30"
- Receiver Width: 5.30"
- Receiver Depth: 6.10"
-
Form Factor:
- Standalone
- Rack-mountable
- Receiver Weight (Approximate): 1.65 lb
Overview
The FTV80D2/FRV80D2 transmitter and receiver transmit eight channels of unidirectional video, two channels of bidirectional data, and one bidirectional contact closure over one optical fiber in a three-slot wide design. The FTV80D2 transmitter and FRV80D2 receiver are available in multimode and single-mode versions.
The FTV80D2/FRV80D2 plug-and-play design ensures ease of installation and no electrical or optical adjustments are required. Modular in design, FTV80D2 and FRV80D2 units can be rack-mounted using the EURACK/USRACK chassis, or stand-alone modules can be placed on a desktop or mounted to a wall (wall mount kit not required).
For stand-alone and wall mount installations, external power is required for the FTV80D2/FRV80D2 units. The units can be powered with the recommended FEXTPS fiber external power supply.
Specifications
Specifications
Specifications
| Weight | 0.02 lbs |
|---|---|
| Condition | New |
| UPC | 700880298152 |
| MPN | FRV80D2M1ST |
| Product Type | Video Extender Receiver |
| Maximum Operating | 6561.68 ft |
| Connectivity | Wired |
| Brand | Pelco |
| Form Factor | Rack-mountable |
