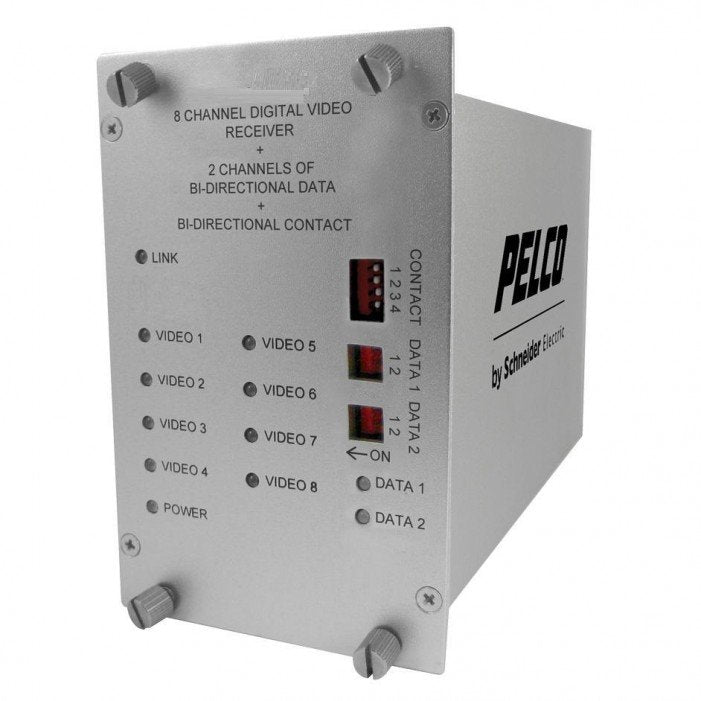

Pelco FRV80D2S1FC - MULTIPLEXER - 8CH 10-BIT DIG-VID M.PLEXER 2

Features

• 10-Bit Digitally Encoded Bidirectional Video for High-Quality Transmission over a Single Fiber
• 1 Bidirectional Data Channel Supports RS-232, RS-422, and RS-485 (2-wire/4-wire), Manchester, and Bi-Phase Communication
• 2 Bidirectional 24-Bit (96 kHz) Digitally Encoded Audio Channels with 600-Ohm Balanced Line-Level Audio (up to +6 dBm) and 20 to 18 kHz Audio Bandwidth
• 1 Bidirectional Contact Closure
• Multimode Fiber Support for Distances up to 4 km (2.5 mi)
• Single-Mode Support for Distances up to 48 km(29.8 mi)
• Exceeds All Requirements for the EIA RS-250C Short-Haul Transmission Specification
• Laser Diode for Transmission of Optical Signals
• Compatible NTSC, PAL, and SECAM Video Standards
• Designed to Meet NEMA TS 1/TS 2 and Caltrans Traffic Signal Ctrol Equipment Environmental Standards
• Voltage Transient Protection on All Power and Signal Input/Output Lines
• LED Status Indicators for Monitoring All Critical Operating Parameters
• Hot-Swappable Rack Modules
• Stand-Alone or Rack-Mountable Modular Desn
