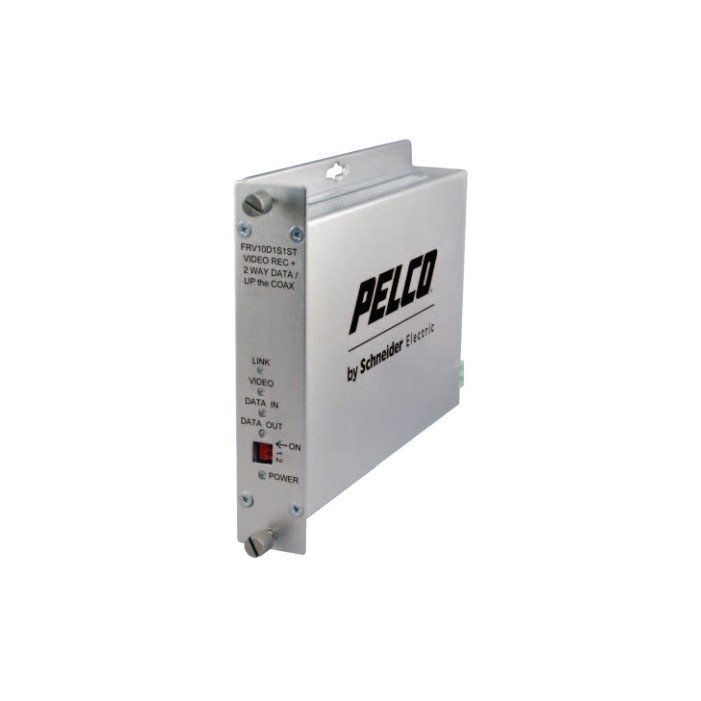

Pelco FTV10D1S1ST | Video Extender Transmitter

Overview
Available in multimode and single-mode versions, the FTV10D1/FRV10D1 fiber transmitter and receiver allow transmission of one unidirectional composite video channel and one bidirectional data channel over one optical fiber. In addition, the “up-the-coax” technology allows Coaxitron pan/tilt/zoom (PTZ) control data to be transmitted the full distance of the fiber (up to 48 km for single-mode fiber). When using single-mode fiber, the FTV10D1 transmitter and the FRV10D1 receiver offer an optical power budget of 23 dB.

The FTV10D1 transmitter and the FRV10D1 receiver are compatible with each other and other fiber models. The FRV10D1 receiver is also backward compatible with the FSV10D1 transmitter.

The FTV10D1/FRV10D1 plug-and-play des ign ensures ease of installation by requiring no electrical or optical adjustments. Modular in design, FTV10D1 and FRV10D1 units can be rack-mounted using the EURACK/USRACK chassis, or stand-alone modules can be placed on a desktop or mounted to a wall (wall mount kit not required).

For stand-alone and wall mount installations, external power is required for the FTV10D1/FRV10D1 units. The units can be powered with the recommended FEXTPS fiber external power supply.
