Pelco FTV40M1ST | Video Extender Transmitter
Description
Description
- Manufacturer Part Number: FTV40M1ST
- Connectivity Technology: Wired
- Maximum Operating Distance: 6561.68 ft
- Number of ST Ports: 1
-
Media Type Supported:
- Optical Fiber
- Coaxial
- Transmitter Height: 1.10"
- Transmitter Width: 5.30"
- Transmitter Depth: 6.10"
-
Form Factor:
- Desktop
- Wall Mountable
- Rack-mountable
- Standalone
- Surface-mountable
- Transmitter Weight (Approximate): 14.11 oz
Overview

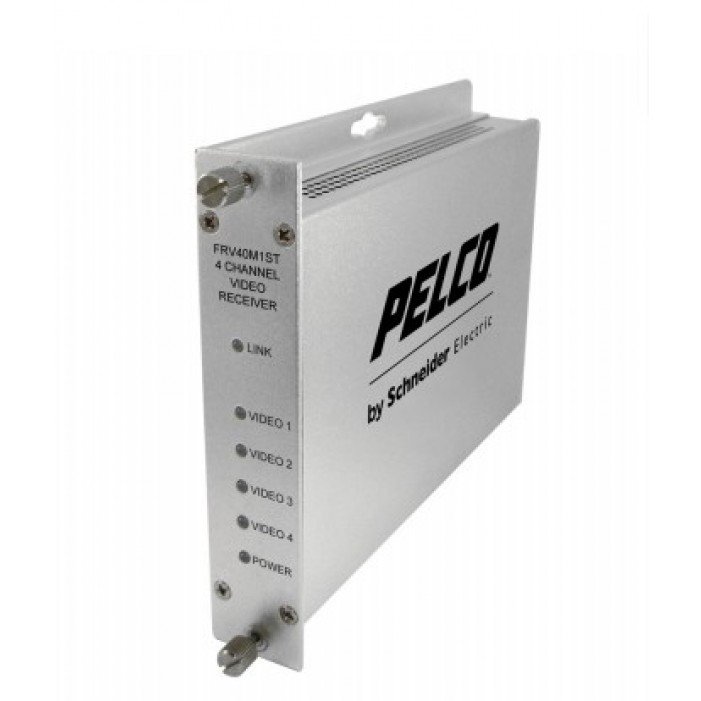

The FTV40/FRV40 fiber transmitter and receiver transmit four channels of video over one optical fiber. The FTV40 transmitter and FRV40 receiver are available in multimode and single-mode versions.
The FTV40/FRV40 plug-and-play design ensures ease of installation by requiring no electrical or optical adjustments. Modular in design,FTV40 and FRV40 units can be rack-mounted using the EURACK/USRACK chassis, or stand-alone modules can be placed on a desktop or mounted to a wall (wall mount kit not required).
For stand-alone and wall mount installations, external power is required for the FTV40/FRV40 units. The units can be powered with the recommended FEXTPS fiber external power supply.
Specifications
Specifications
Specifications
| Weight | 1.8 lbs |
|---|---|
| Condition | New |
| UPC | 700880297612 |
| MPN | FTV40M1ST |
| Product Type | Video Extender Transmitter |
| Maximum Operating | 6561.68 ft |
| Connectivity | Wired |
| Brand | Pelco |
| Form Factor | Surface-mountable |
