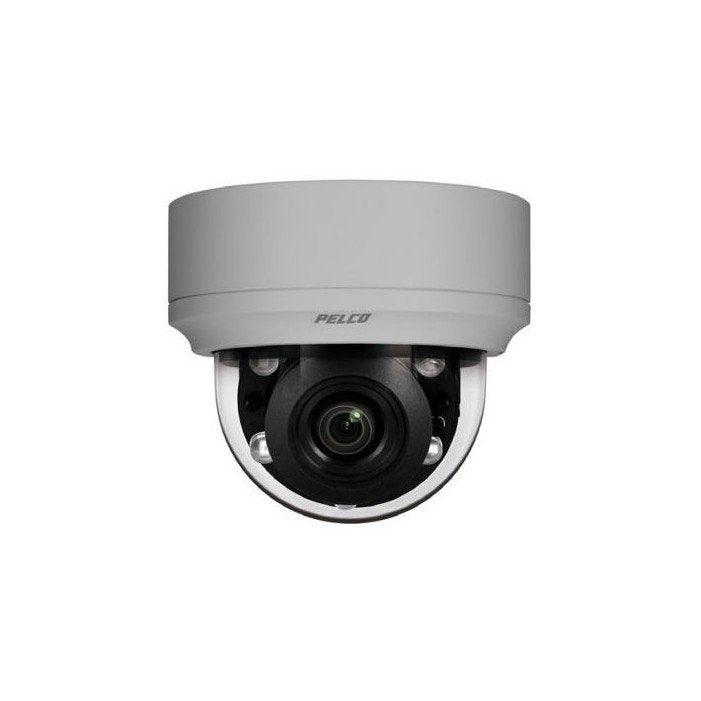

Pelco IME229-1RS | Sarix 2 Megapixel Network Camera, Dome

Overview
Sarix Enhanced Range with SureVision 3.0

Sarix Enhanced (E) range cameras deliver high definition (HD) resolution, consistent color sc ience, fast processing power, and simultaneous advanced low-light performance with wide dynamic range (WDR) and anti-bloom technologies. New advancements include 3D noise filter ing, smooth response to illumination changes, and improved tone mapping to retain color accuracy and overall image contrast.

Designed to install quickly, the ca meras include autofocus, motorized zoom, built-in analytics, and other advanced features needed for demanding security applications.

Camera

The IME Series contains an integrated varifocal MPx autofocus lens (3 ~ 9 mm or 9 ~ 22 mm). Form factors include indoor and outdoor domes. All models feature a sturdy design that is both vandal- and tamper-resistant. The environmental model features worry-free use in a wide range of environmental operating conditions.

Sarix Enhanced range cameras include four unique, advanced autofocus options: temperature change (every 10°C / 18°F) , day/night transition, a daily autofocus routin e, and manual autofocus. These benefits ensure clear, focused images regardless of the scene or environment. All autofocus options are available through the web UI.

Integrated and Adaptive IR Illumination is optionally available on all outdoor models.

Video

The IME Series supports two independently-configurable video streams in addition to a service video stream. The streams can be compressed in MJPEG and H.264 form ats across several resolution configurations. The IME Series offers real-time video (60 fps) with full HD resolution (up to 3 MPx) using H.264 compression for optimized bandwidth and storage efficiency.

The streams can be configured to a variety of frame rates, bit rates, and group of pictures (GOP) structures for additional flexibility in bandwidth administration. In addi tion, streams can be encoded as constrained variable bi t rate (CVBR) or constant bit rate (CBR).

Open and Integrated

Sarix Enhanced range cameras seamlessly connect to Pelco video management systems such as VideoXpert , Endura version 2.0 (or later), and Digital Sentry version 7.3 (or later). Sarix Enhanced range cameras integrate with major third-party video management systems through the Pelco API, and other third-party software and systems through the ON VIF Profile S and Pr ofile G standards.

Built-In Analytics

Analytics enhance the flexib ility and performance of Sarix Enhanced range cameras. Eight behaviors are preloaded and included as standard features. These behaviors can be configured and enabled using a standard Web browser, and they are compatible with VideoXpert, Endura, or a third-party system that supports alarms using Pelco’s API.

Convenient Power

Sarix Enhanced range cameras are designed with Power over Ethernet (PoE) 24 VAC and 12 VDC to reduce costs and simplify planning, wiring, and installation. PoE functionality works with PoE- enabled network switches or power injectors, eliminating the need for separate power supplies and cabling, and increasing camera fail safety through an uninterruptable power supply (UPS).
