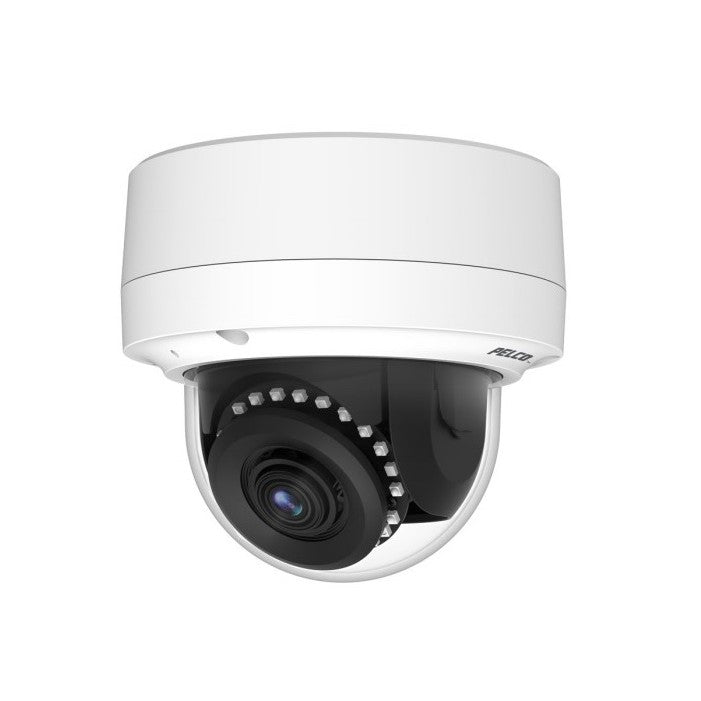

Pelco IMP231-1IRS | Sarix 2 Megapixel Network Camera, Dome

Overview

• H.265, H.264 Main, High, MJPEG video encoding
• Up to 5 MP resolution at 30 frames per second
• Up to 60 frames per second (ips) at 4 MP for 5 MP cameras
• Autofocus motorized remote zoom lens
• Integrated adaptive IR illumination up to 50 m (some models)
• Operating temperature up to 60°C (140°F) (environmental models)
• Micro SDHC and SDXC card up to 2 TB addressable, 128 GB testable
• Basic Analytics including Simple Motion Detection and Camera Sabotage
• Power over Ethernet (PoE or PoE+), 24 VAC, 12 VDC
• Pelco Smart Compression Technology
• All models vandal resistant to IK10
• Compatible with Pelco and third-party video management systems
• ONVIF Profile S, Profile G, Profile Q, and Profile T conformant
• Full 3-year warranty

Sarix Professional Range
Powerful, versatile, and affordable, the Sarix Professional (P) range cameras pack the most popular features and functionality of Sarix technology into a wide range of indoor and outdoor options, including bullet cameras and domes. There is also a vandal resistant wedge camera and a box camera. Mix and match the performance options and form factor you need for almost any lighting condition, environment, and application.

IMP Dome Series Camera
Within the Sarix Professional range, the Sarix IMP Series dome cameras feature a remote zoom lens for wide angle or long range surveillance needs. Autofocus capability ensures the camera can be automatically refocused when needed. Additionally, the Sarix IMP Series features advanced color science and true WDR, optional adaptive IR illumination for increased visibility in difficult lighting conditions. IK10 vandal resistant on both indoor and outdoor domes and IP66/IP67 on the outdoor dome ensures enough robustness for installation in challenging environments.

Video
Sarix Professional provides options for three simultaneous video streams. The three streams can be compressed with efficient H.265, H.264 High or Main profiles, or MJPEG formats. The streams can be configured to a variety of frame rates and variable bit rates to optimize image quality with bandwidth and storage efficiency. Pelco Smart Compression is available on both H.264 and H.265, minimizing storage and bandwidth utilization.

Edge Storage
Sarix Professional range cameras feature onboard edge storage with a micro SDHC and SDXC card. Video clips of varying lengths can be stored to the card upon alarm, or video can be written continuously to the SD card in the case of network outage. Video can be retrieved from the card through the FTP protocol or by using an ONVIF Profile G compliant client.

Open and Integrated
Sarix Professional range cameras seamlessly connect to Pelco video management systems such as VideoXpert, VXToolbox, Endura version 2.0 (or later), and Digital Sentry version 7.3 (or later). Sarix Professional range cameras integrate with major third-party systems through the open Pelco API or the ONVIF Profile S, Profile G, Profile Q, and Profile T standards.

Standard Web Interface
Pelco cameras use a standard Web browser interface for easy remote setup and administration. Controls are optimized for convenient one-step camera configuration for features including color, exposure, flicker control, backlight compensation, and streaming.
