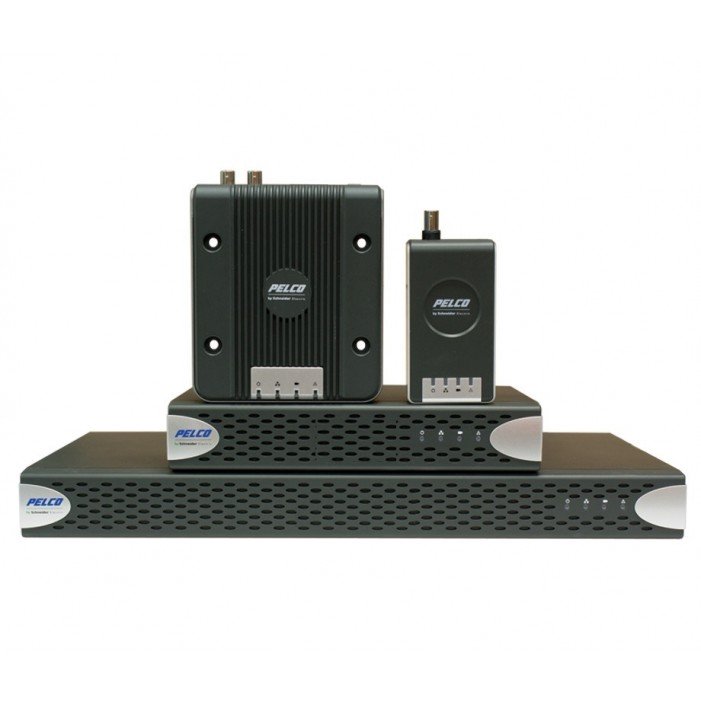

Pelco NET5504-EU | 4 Channel H.264 Based Network Video Encoders
Description
Description
The NET5504-EU is a high performance, 4 Channel video encoder that integrates analog cameras and positioning systems into an IP video surveillance system. The NET5504-EU encoder deliver crystal clear images while drastically reducing the network bandwidth and storage requirements for IP video surveillance applications.
The NET5504-EU encoder is capable of compressing a single video input into two streams, each up to D1 (720 x 480 for NTSC and 720 x 576 for PAL) and 30/25 ips. With individually configurable streams, each channel of the NET5504-EU encoder can be configured to meet differing bandwidth, resolution, and frame rate requirements.
The High profile H.264 compression option delivers outstanding picture quality at a drastically lower bandwidth. While H.264 compression provides significant bit rate savings over JPEG compression schemes, High profile H.264 enables sophisticated tools that further reduce bit rate while also improving picture quality under certain scene conditions. The NET5504-EU encoder provide Baseline, Main, and High profile H.264 compression to optimize the cost of deploying IP video surveillance while improvingimage quality.
The NET5504-EU encoder are enabled for video intelligence at the edge. The analytics capabilities included with this encoder are Motion and Sabotage detection.
Pelco - NET5504-EU - Features
- Open Standards-Based Architecture
- MJPEG and H.264 Baseline, Main, or High Profile Compression
- Dual-Stream at up to D1; 30/25 Images per Second (ips) per Stream
- Integrated Coaxitron, Panasonic Proteus, and Pelco D and Pelco P PTZ Protocols
- ONVIF Profile-S Conformant
Specifications
Specifications
Pelco - NET5504-EU - Product Categories
- Security
- Video Surveillance
- Video Transmission
Pelco - NET5504-EU - Specifications
| Audio Support | Yes |
|---|---|
| Capacity | 4 Channel |
| Type | Encoder |
| Form Factor | Box |
| UNSPSC Code | 39121527 |
