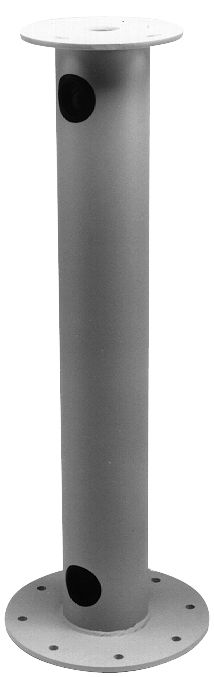

Pelco PM2000 | Universal Pedestal Mount
Description
Description
The PM2000 is an universal pedestal mounts designed for use with medium- and heavy-duty pan/tilts, including Legacy(tm) and Esprit(tm) integrated positioning systems. The PM2000 also compatible with PS20 Series scanners. Constructed from aluminum, these mounts will safely support up to 125 pounds (56.62 kg). Optional adapters are available for various pan/tilt and enclosure applications. The PM2000 height is 24 inches (60.96 cm).
The PM2000 can also be adapted for use with enclosures when used with the Ah2000 or AH2000 adjustable head. The Ah2000 and AH2000 allow 360-degree positioning of the enclosure; the Ah2000 is for use with EH3512/EH4700 Series enclosures, and the AH2000 is for use with EH5700, EH8106, and EHX*E Series enclosures. In certain applications, the Ah2000 or AH2000 can be utilized alone.
When mounting a Legacy integrated positioning system on the PM2000, the PA2000 adapter must also be used. No adapter is required when using the Esprit integrated positioning system with factory-supplied EPP pedestal adapter plate.
Pelco - PM2000 - Features
- Ceiling/Pedestal Mounting
- Supports up to 125 lb (56.62 kg)
- For Use with Medium- and Heavy-duty Pan/Tilts
- Optional Adapter Available for Use with Enclosures
- Cable Feedthrough Holes (Top & Bottom)
Specifications
Specifications
Pelco - PM2000 - Specifications
| SKU | PM2000 |
|---|---|
| Item Description | Universal Pedestal Mount |
| Manufacturer | Pelco |
| NDAA | Compliant |
| Form | PTZ |
| Mount Type | Ceiling Mounts, Pedestal Mounts |
| Outdoor Use | Yes |
