Pelco POE16ATN-US | POE8ATN PoE Injector Hub
Description
Description
- Manufacturer Part Number: POE16ATN-US
-
Protection Type:
- Over Current
- Over Voltage
- Over Temperature
- Short Circuit
- Overload Protection
-
Input Voltage:
- 110 V AC
- 230 V AC
- Maximum Output Power: 538 W
- Output Ports: 16 10/100/1000Base-T
- Height: 1.8"
- Width: 17.3"
- Depth: 8.9"
-
Certifications & Standards:
- CE, EN55022 Class A
- CE, EN55022 Class B
- FCC, Part 15, Class A with UTP cabling
- FCC, Part 15, Class B with FTP cabling
- UL/cUL Listed
Overview

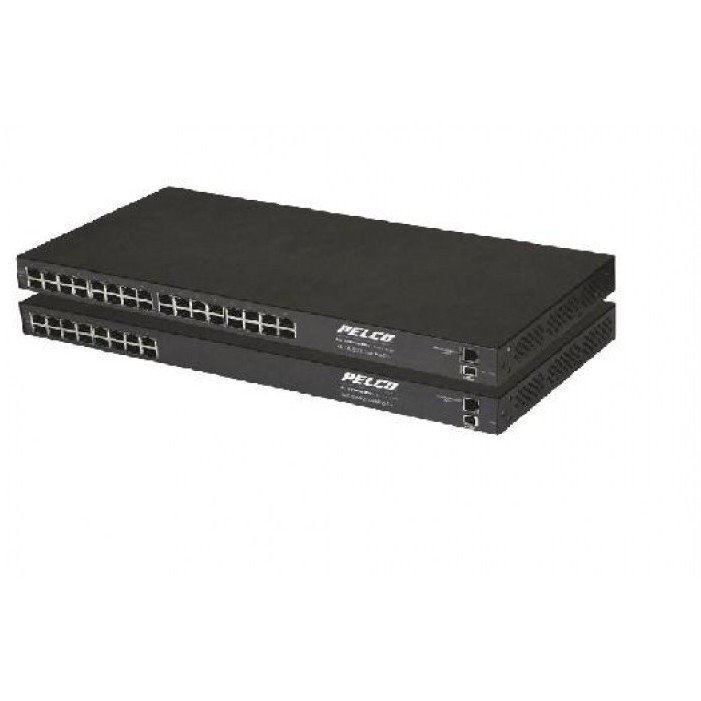

The POE8ATN and POE16ATN Power over Ethernet (PoE) 8-port and 16-port midspans are designed to meet the demanding data rate and power requirements of IP cameras with high-quality streaming video capabilities. The midspan offers total output power of 33.6 W per port, and meets the IEEE802.3at standard for detection, connection, disconnection, and fault protection. Both models provide SNMP network management.
The POE8ATN and POE16ATN midspans are compatible with 10/100/1000Base-T systems. AC input voltage range is 90 to 264 VAC with an input frequency range of 47 to 63 Hz. Maximum efficiency is typically 75 percent at maximum load and 120 VAC, 60 Hz.
Specifications
Specifications
Specifications
| Weight | 10 lbs |
|---|---|
| Condition | New |
| UPC | 700880327401 |
| MPN | POE16ATN-US |
| Product Type | PoE Injector Hub |
| Brand | Pelco |
