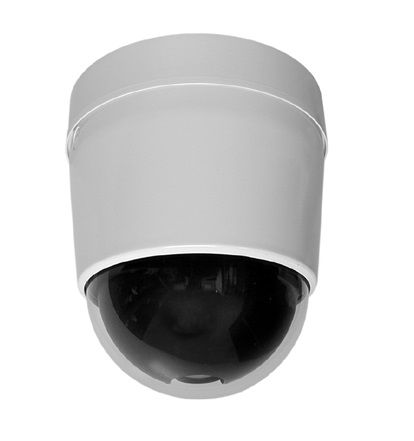

Pelco SD423-SMW-0-X | 540 TVL Analog Smoked Indoor Dome Camera, 23X, White, PAL
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Pelco SD423-SMW-0-X | 540 TVL Analog Smoked Indoor Dome Camera, 23X...
Description
Description
Spectra SD423-SMW-0-X is designed with ease of installation and ease of maintenance in mind. Dome system consists of three components: a back box, a dome drive, and a lower dome. This system components are interchangeable with other Spectra IV dome systems, making retrofitting and application adjustments simple. Also, dome drives and lower domes can be removed and replaced reducing maintenance time.
A passive UTP circuit is located on the door assembly for convenient video transmission through twisted pair wire. For added flexibility, Pelco fiber modules can also beattached to the door assembly for transmission over single-mode or multimode fiber.
The Spectra dome drive’s integrated optics package incorporates many advanced features that allow the system to produce high quality video in the most difficult environments. The camera features 23X optical zoom and 12X digital zoom. Spectra dome drives feature an EXview HAD imager for increased sensitivity and LowLight technology to compensate for scenes where minimal light is present. The camera also offers freeze frame between presets and window blanking.
Pelco - SD423-SMW-0-X - Features
- Autofocus, High Resolution Integrated LowLight Color Camera/Optics Package
- Day/Night, 540 TVL
- 23X Optical Zoom
- Window Blanking
- Camera Title Overlay, 20 User-Definable Characters
- On-Screen Compass and Tilt Display
- Password Protection
- Freeze Frame During Presets
- Built-in Surge and Limited Lightning Protection
- Integrated Passive Unshielded Twisted Pair (UTP) Circuit
- Internal Scheduling Clock
- Ability to Add IP Network Capability by Purchasing Optional TXB-N Module
- Installs Quickly and Easily to Any Type of Ceiling
- Quick Disconnect to Dome Drive
- Injection-Molded Plastic
Specifications
Specifications
Pelco - SD423-SMW-0-X - Specifications
| SKU | SD423-SMW-0-X |
|---|---|
| Item Description | 540 TVL Analog Smoked Indoor Dome Camera, 23X, White, PAL |
| Features | Auto Gain Control, Automatic White Balance, Coaxitron, Day/Night, Digital Zoom, On Screen Display Menu, Privacy Masking |
| Manufacturer | Pelco |
| NDAA | Compliant |
| Camera Signal | Analog |
| Resolution | 540 TVL |
| Sensor Option | 1/4" CCD |
| Lens Type | Motorized Zoom |
| Lens Size | 23X |
| Infrared Distance | Non Infrared |
| Durability | Indoor |
| Mount Type | Ceiling, Wall |
| Voltage | 24vAC |
| Electronic Shutter | 1/1.5 ~1/30,000 |
| Image Device | 1/4-inch progressive scan CCD |
| Image Pixels-Effective | 752 (H) X 582 (V) |
| Minimum Scene Illumination | 0.55 lux at 1/50 sec (color), 0.12 lux at 1/50 sec (B-W) |
| Operating Temperature | 0° to 50°C (32° to 122°F) |
| OSD Menu | English, Spanish, Portuguese, Italian, French, German, Russian, Polish, Turkish, and Czech |
| S/N Ratio | >50 dB |
| Scanning System | 2:1 Interlace |
| Signal System | PAL |
| Video Output | 1 Vp-p, 75 ohms |
| Synchronization | Internal/AC line lock, phase adjustable using remote control, V-Sync |
| Rotation Angle | 360° |
| Automatic White Balance | Automatic with manual override |
| Auto Gain Control | Automatic/OFF |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Auto Gain Control | Yes |
| Coaxitron | Yes |
| Digital Zoom | Yes |
