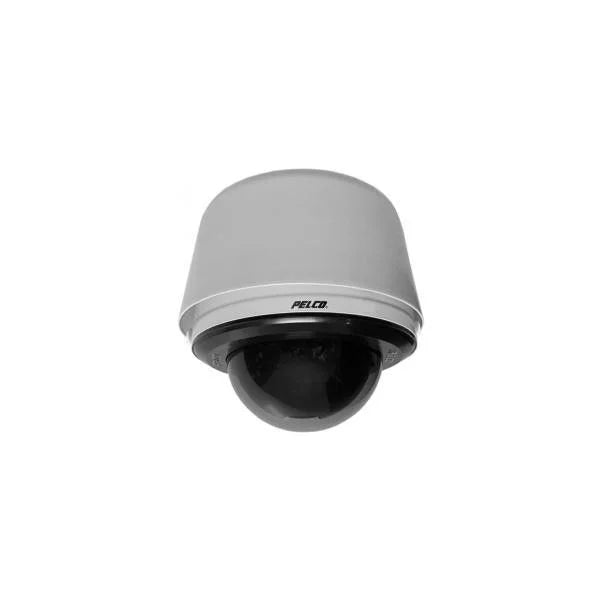

Pelco SD436-PG-E1-X | 540 TVL Analog Pendant Environmental Dome Camera, Clear, Light Gray, PAL, 36X Lens

The SD436-PG-E1-X from Pelco is a 540 TVL analog pendant dome camera, clear, light gray, PAL, 36X lens. Spectra IV SE was designed with ease of installation and ease ofmaintenance in mind. Each dome system consists of three components: a back box, a dome drive, and a lower dome. These three system components are interchangeable with other Spectra IV SE dome systems, making retrofitting and application adjustments simple. Also, dome drives and lower domes can be removed and replaced reducing maintenance time.

The Spectra IV SE Series can also be ordered with heavy-duty, pressurized, and stainless steel back box options (refer to the appropriate product specification sheets for more information). Each back box model features built-in back box memory to store camera and location-specific dome settings, including labels, presets, patterns, and zones. A passive UTP circuit is located on the door assembly for convenient video transmission through twisted pair wire. For added flexibility, Pelco fiber modules can also be attached to the door assembly for transmission over single-mode or multimode fiber.

The Spectra IV SE dome drive’s unique integrated optics package incorporates many advanced features that allow the system to produce high quality video in the most difficult environments. All cameras in Spectra IV SE dome drives feature LowLight technology allowing the cameras to compensate for scenes where minimal light is present. The 36X cameras feature built-in motion detection and advanced 128X WDR that enables the system to compensate for scenes where dramatic contrasts in lighting are present. The 36X day/night camera electronic image stabilization digitally reduces blurring of the camera image due to vibration caused by external sources, such as wind and traffic. Auto sharpness enhances picture detail by increasing the aperture gain of the camera and sharpening the edges in the picture.

Special consideration was taken when designing the Spectra IV SE lower dome bubble to ensure that an optimal optical relationship between the lens and bubble was achieved, providing crystal clear video at long focal lengths.

Spectra IV SE dome systems feature many software enhancements that increase performance and make configuration and operation easy. An internal scheduling clock allows for the scheduling of presets and patterns. Window blanking enables a user to configure up to eight, four-sided, user-defined privacy areas. Password protection prevents unauthorized users from changing the system settings. Configurable on-screen compass and tilt display provides positioning information when needed. Intuitive multilingual on-screen menus can be displayed in English, Spanish, Portuguese, Italian, French, German, Russian, Polish, Turkish, and Czech.
