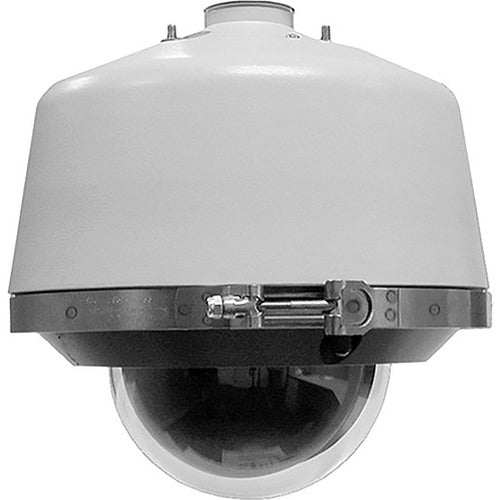

Pelco SD436-PRE1 | Pressurized Spectra Surveillance Camera, Dome

Overview
Pelco’s Pressurized Spectra IV SE Series dome system provides ultimate protection of the camera optics and electronics from moisture, corrosive gases, and airborne contaminants. Domes are easily pressurized with dry nitrogen to 8 psig (55 kPa) before or after installation to stabilize the environment inside the system.

Sensors strategically placed in the dome system send an “Alert” message when changes in internal pressure, temperature, or dew point are beyond factory-set acceptable limits. The sensors also allow for instant on-screen display of internal temperature, pressure, and dew point.

The components of the Pressurized Spectra IV SE Series include an environmental pendant style back box and a lower dome designed for optimum optical clarity. All stainless steel construction provides added protection in harsh environments.

The back box features a sun shroud, heater, and fan to maintain a consistent operating environment. The back box also features built-in back box memory, an integrated passive UTP circuit, two auxiliary outputs, seven alarm inputs, and is compatible with all Spectra IV SE Series dome drives.

The lower dome features an innovative O-ring seal and a stainless steel V-band to create a reliable pressure seal. The V-band has a unique latching system with one captivated fastener making lower dome installation easy. Accessible on the lower dome trim ring are a Schrader valve for system purging and a pressure relief valve.

The Pressurized Spectra IV SE Series is supplied with a prewired cable with mating connector. The cable includes all wires for system functionality, including power, alarms, auxiliaries, coaxial video, UTP video, and serial control.

Also available are pressurized back box models with fiber optic feedthrough that allow Pelco’s FS85011A and third-party fiber optic transmitters to be installed inside the back box. These models include either a 9/125 µm single-mode or 62.5/125 µm multimode fiber optic cable with an ST-type connector.
