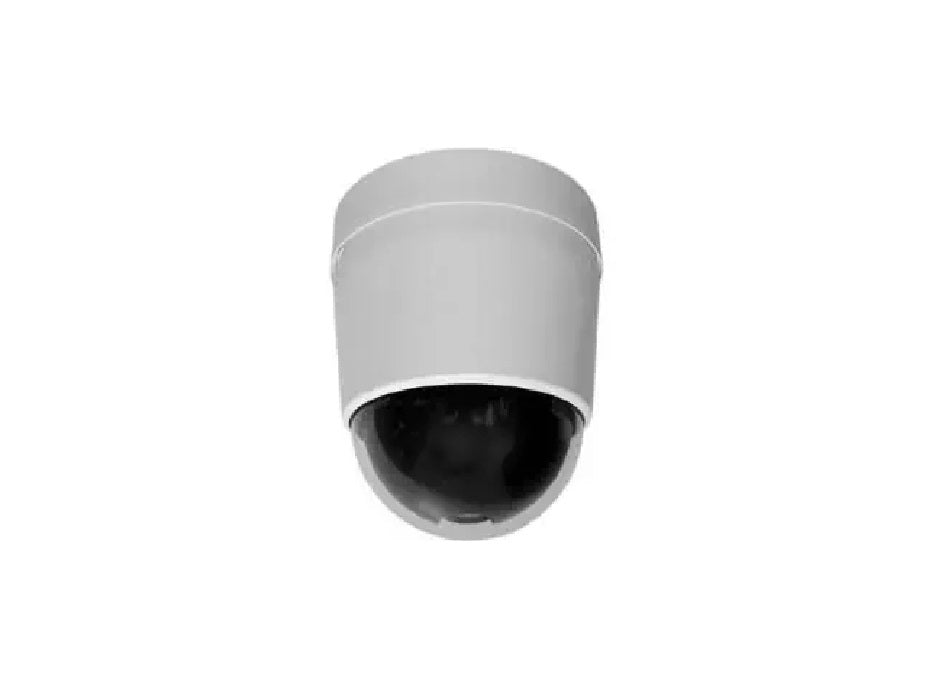

Pelco SD436-SMW-0 | Spectra IV SE Surface Mount Dome Camera System, Smoked Bubble, White, NTSC

The SD436-SMW-0 from Pelco is a Spectra IV SE Surface Mount Dome Camera System, Smoked Bubble, Black, NTSC. The dome system consists of the BB4-SMB Surface Mount Back Box, DD436 Dome Drive with integrated 36x Day/Night camera, and LD53SMB-0 Lower Dome with smoked bubble. The dome drive and lower dome can be removed and replaced, reducing maintenance time.

The Spectra IV SE BB4-SMB Surface Mount Back Box features built-in back box memory to store camera and location-specific dome settings, including labels, presets, patterns, and zones. A passive UTP circuit is located on the door assembly for convenient video transmission through twisted pair wire. For added flexibility, Pelco fiber modules can also be attached to the door assembly for transmission over single-mode or multimode fiber. The Spectra IV SE LD53SMB-0 Lower Dome with the smoked bubble is designed to ensure that an optimal optical relationship between the lens and bubble is achieved, providing clear videos at long focal lengths.

The Spectra IV SE dome system features many software enhancements that increase the performance and makes configuration and operation easy. An internal scheduling clock allows for the scheduling of presets and patterns. Window blanking enables a user to configure up to eight, 4-sided, user-defined privacy areas. A password protection feature prevents unauthorized users from changing system settings. Configurable on-screen compass and tilt display provides positioning information when needed.

Features
