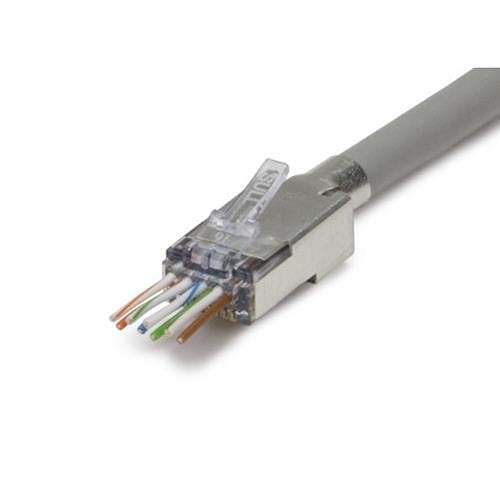

Platinum Tools 100027C | Connector, Polycarbonate, Cable Outside Diameter Maximum 0.305 in, Metal
This shielded, patented ezEX-RJ45 connector is designed for larger cables and conductors. Features a unique integrated Hi-Lo stagger load bar and allows 'big' conductors to pass through the front end of the connector making it easy to verify the wiring sequence before terminating. This connector is typically used with Cat 6A and is terminated with EXO Crimp Frame and EXO-EX Die (161C).
Platinum Tools - 100027C - Features
- Hi-Lo stagger to isolate each conductor
- Simple one piece/pass through design, no bars or liners
- Shielded 6/6A compliant
- Insulation Diameter (Conductor) - Size range: 0.043" - 0.048" (1.09 -1.22mm)
- Max Outer Diameter: 0.305" (7.75mm)
- Solid or Stranded 24-22 AWG
- 50 micron gold plated contacts
- TAA, TIA, RoHS, UL & FCC compliant
- US Patents 9,543,729 B2; 10,116,082 B2; & 10,573,990 B2. Foreign patents.
Specifications
Specifications
Platinum Tools - 100027C - Specifications
| Manufacturer Name | Platinum Tools |
|---|---|
| Manufacturer Part Number | 100027C |
| Item Description | Connector, Polycarbonate, Cable Outside Diameter Maximum 0.305 in, Metal |
| Body Material | Polycarbonate |
| Cable OD | 0.31 in. |
| Cable Outside Diameter Maximum | 0.305 |
| Cable Size | 23 to 22 AWG |
| Cable Type | Solid, Stranded |
| Category | Cat 6A, Large Cat 6 |
| Color | Silver |
| Conductor Size | 23 to 22 AWG |
| Conductor Type | Solid/Stranded |
| Connector Termination | Crimp |
| Connector Type | RJ45 |
| Contact Finish | Gold-Plated |
| Insulation Diameter | 0.048 |
| Material | Polycarbonate |
| Package | 25/Clamshell |
| Plug Type | Cable Connector |
| Power of Ethernet | 30 |
| Product Type | Connector |
| Shield Type | Shielded |
| Shielded | Shielded |
| Special Rating | RoHS Compliant; UL Listed |
| Wiring Configuration | 0.305 in. OD |
