Platinum Tools 105024 | Connector, RJ45, Cat 6, Cat 6A
Regular price
$431.20
Unit price
Brand: Platinum Tools
|
SKU:
893560
Regular price
$431.20
Unit price
Description
Description

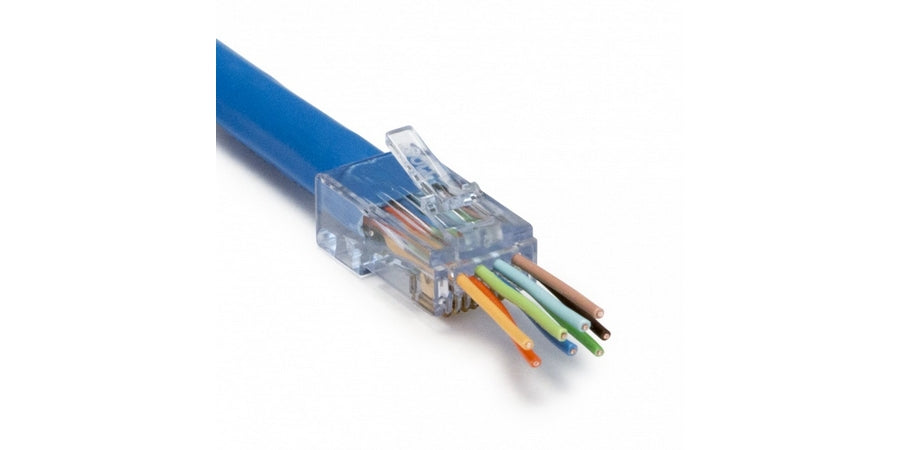

Platinum Tools 105024 | Connector, RJ45, Cat 6, Cat 6A
The ezex¶44 connector is designed for larger cables and conductors (typically cat6). 500pcs bag. 849160008620.
Platinum Tools - 105024 - Features
- Hi-Lo stagger to isolate each conductor
- Simple one piece/pass through design, no bars or liners
- Insulation Diameter (Conductor) Size range: .039" - .044" (1.0 -1.12mm)
- Max Outer Diameter: .290" (7.36mm)
- 50 micron gold plated contacts
- 5e/6/6A compliant
- Solid or Stranded 24-22 AWG
- TIA, TAA, RoHS, UL & FCC compliant
- Typically used with Cat6 (Sm. Cat6A)
- US Patents 9,543,729 B2; 10,116,082 B2; & 10,573,990 B2. Foreign patents.
Specifications
Specifications
Platinum Tools - 105024 - Specifications
| Manufacturer Name | Platinum Tools |
|---|---|
| Manufacturer Part Number | 105024 |
| Item Description | Connector, RJ45, Cat 6, Cat 6A |
| Category | Cat 6; Cat 6A |
| Conductor Size | 24 to 22 AWG |
| Conductor Type | Solid/Stranded |
| Connection | CAT6 |
| Connector Type | RJ45 |
| Contact Finish | Gold-Plated |
| Module Type | Unshielded Connector |
| Outer Diameter | 0.29 |
| Product Type | Connector |
| Shield Type | Unshielded |
| Termination Type | Crimp |
| Wiring Configuration | 0.29 in. OD |
