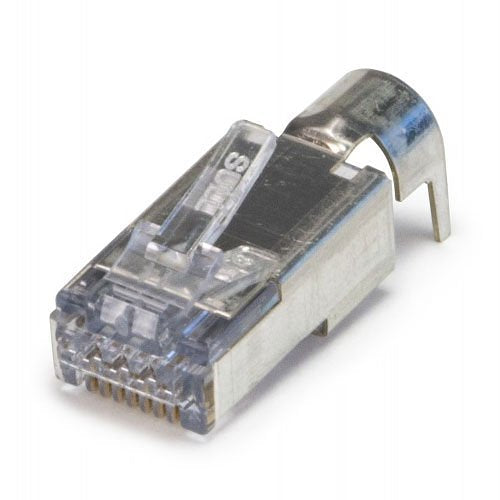

Platinum Tools 105029 | Shielded RJ45 External Connector

Platinum Tools - 105029 - Features

• Hi-Lo stagger to isolate each conductor
• Simple one piece/pass through design, no bars or liners
• Shielded 6/6A compliant
• Insulation Diameter (Conductor) - Size range: 0.043" - 0.048" (1.09 -1.22mm)
• Max Outer Diameter: 0.305" (7.75mm)
• Solid or Stranded 24-22 AWG
• 50 micron gold plated contacts
• TAA, TIA, RoHS, UL & FCC compliant
• US Patents 9,543,729 B2; 10,116,082 B2; & 10,573,990 B2. Foreign patents.
