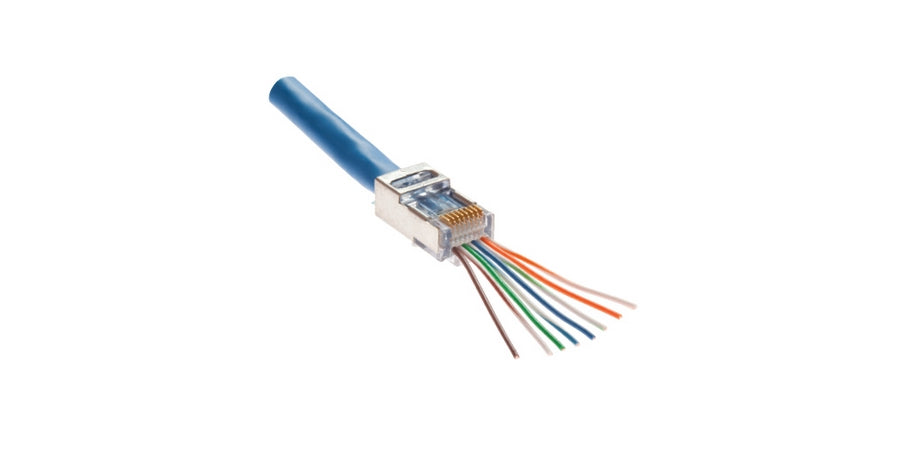

Platinum Tools 202020J | EZ-RJ45 Shielded Cat5/5e/6 Connector

Platinum Tools - 202020J - Features

• EZ-RJ45® design allows the wires to pass through the connector so the twists in each pair can be pulled closer to the contacts than conventional plugs.
• Maintaining the twists to the point of termination significantly decreases crosstalk and markedly increases performance.
• Fully shielded products provide reduced pair-to-pair crosstalk, alien crosstalk, and considerably improved immunity to noise at all frequencies.
• Significantly improve Shannon capacity.
• Substantially improve noise immunity at all frequencies, especially above 30 MHz when cable balance starts to significantly degrade.
• Category 6 performance per EIA/TIA B.2. FCC compliant, UL rated. RoHS compliant
• Max Cable OD: 6.60mm (0.260"), Max Insulated wire OD: 1.016mm (0.040")
• For solid round or stranded wire cables.
• TAA Compliant
