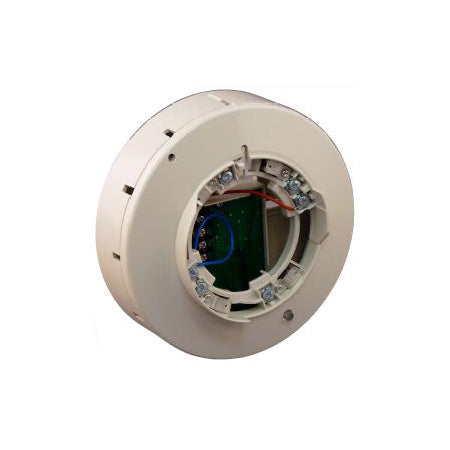

Potter Electric Signal 1430808 | ARB Addressable Relay Base
Description
Description
The Addressable Relay Base 6” (ARB-6) is combination sensor base with a relay module included. The base has a locking feature for the sensor that may be used or removed in the field. Once the head is removed, the relay is accessible in the bottom of the unit.
The relay module is a uniquely addressed module that provides two form C contacts. The first relay is rated at 8 amps at 30 VDC or 240VAC. The second relay is rated at 2 amps at 30 VDC or 240 VAC. The ARB-6 has a divider providing means for separation of high voltage and non-power limited connections from the power limited, regulated Signaling Line Circuit (SLC).
Potter Electric Signal - 1430808 - Features
- Two form C relays as part of the base assembly
- Works independent of the sensors attached
- May be mapped to any device connected to the Control Panel
- LED to indicate that the unit is active
- Separation included in the base for high and low voltage and power limited/non-power limited connections
Specifications
Specifications
Potter Electric Signal - 1430808 - Specifications
| Type | Control Panel Accessories |
|---|---|
| UNSPSC Code | 46171600 |
