Description
Description

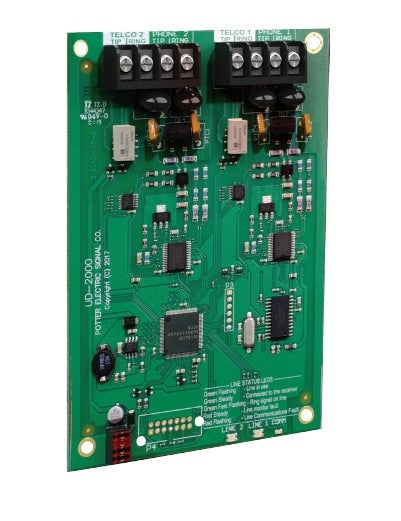

Potter Electric Signal 3992769 | Digital Alarm Communicator
The UD-2000 Digital Alarm Communicator Transmitter (DACT) provides for up to two (2) phone lines for communication to a monitoring station. The UD-2000 communicates using the SIADCS or Ademco Contact ID protocols. When enabled, the DACT automatically monitors each phone line or voltage and has the ability to seize the line and connect with a remote receiver. Once the communication is complete, the DACT will hang up.
Potter Electric Signal - 3992769 - Features
- Allows for communication to Monitoring Station
- Communicates using SIA-DCS or Ademco Contact ID Protocols
- For use with IPA, AFC, and ARC series Addressable Panels and PFC-4064 Conventional Panel
- Status LEDs indicate operation of DACT card
- Installs with ease behind main panel LCD display via UserInterface bracket
- Device address is set internally to address 1
- Includes two (2) RJ45 phone cords
Specifications
Specifications
Potter Electric Signal - 3992769 - Specifications
| Operating Voltage | 22.0-24.0V |
|---|---|
| Standby Current | 16mA |
| Alarm Current | 23mA |
| Max UD-2000s per panel | 1 |
| Dimensions | 4”W x 6”H x 1-5/8”D |
| Operating Tempuratures | 0°C - 49°C (32°F-120°F) |
| Operating Humidity Range | 10% - 93% @ 30°C (86°F) (non-condensing) |
| Mounting Options | In FACP Behind keypad |
| Shipping Weight | 0.47 lbs |
| Form | Hardwired |
| Type | Control Panel |
| Zones | Under 8 |
| User Codes | Over 50 |
| UNSPSC Code | 46171600 |
