Description
Description

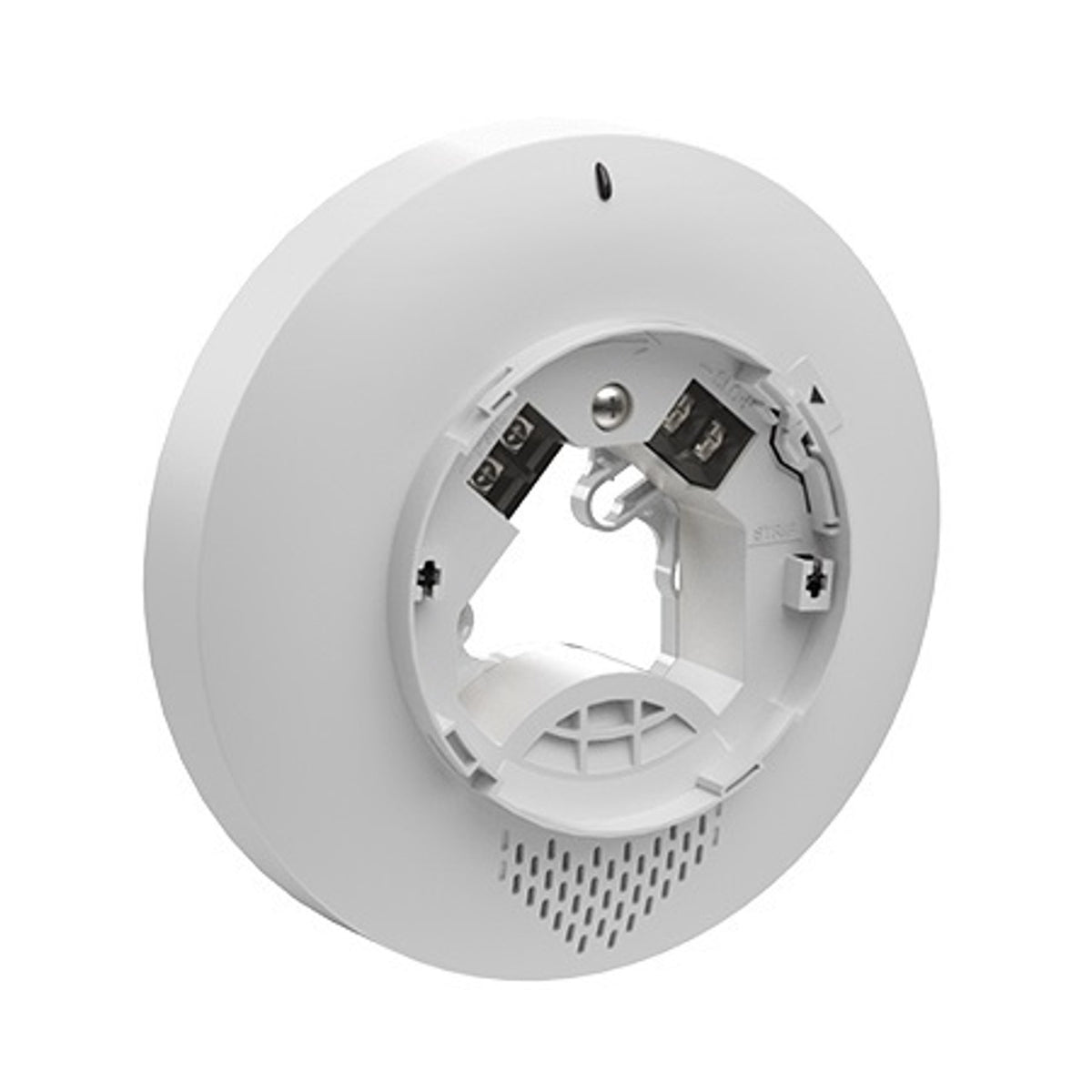

Potter Electric Signal 3992786 | PAD 300 Low Frequency Sounder Base
The Addressable Low Frequency Sounder Base (PAD300-LFSB) is a sounder base that may be utilized in a variety of applications. The base has a locking feature for the detector that may be used or removed in the field. Once the head is removed, the sounder is accessible in the bottom of the unit.
Potter Electric Signal - 3992786 - Features
- Addressable low frequency sounder base, allows for single station, grouped or all call activation
- May be mapped to any device connected to the control panel
- Terminals accept 22 to 12 AWG wire sizes
- Supports Class A, Class X and Class B wiring
- Does not require SLC Loop address, uses PAD sub point addressing feature
- Complies with the Low Frequency Signal Requirements per NFPA 72 and UL 464 for Audible Signaling Devices
- 24 VDC Sounder base power connection supervised internally by each sounder base. No external power supervision relays required
Specifications
Specifications
Potter Electric Signal - 3992786 - Specifications
| UNSPSC Code | 46171600 |
|---|---|
| SLC Voltage | 24 VDC |
| SLC Standby Current | 300 ?A |
| PWR Voltage | 16-33 VDC |
| PWR Active Current | 155mA |
| Alarm LED Current | 1.4 mA |
| Sound Pressure Level | 75dB @ 10ft per UL464, 85dB @ 10ft per UL268 |
| Installation Temperature Range | 32 to 150°F (0°C to 66°C) |
| Operating Humidity Range | 0.93 |
| Dimension | 6.4 in (163 mm) |
| Weight | 240 g (8.47 oz) |
| Height | 1.57 in (40 mm) |
