Brand: Potter Electric Signal - Usa
|
SKU:
738204
Potter Electric Signal 4430006 | RSW-21-G A N/O Rolerball Switch Grey 10PK
Regular price
$10.81
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Potter Electric Signal 4430006 | RSW-21-G A N/O Rolerball Switch Gr...
Regular price
$10.81
Unit price
Brand: Potter Electric Signal - Usa
|
SKU:
738204
Regular price
$10.81
Unit price
Shipping calculated at checkout.
Description
Description

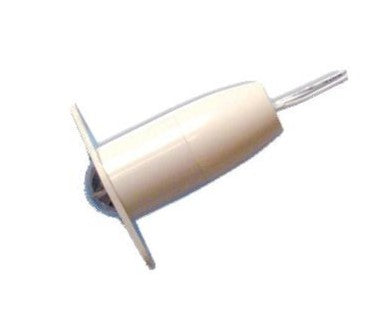

Potter Electric Signal 4430006 | RSW-21-G A N/O Rolerball Switch Grey 10PK
The RSW-21 is a roller ball type switch for a closed circuit application using a hardened stainless steel ball. It fits into a ¾ drilled hole for recessed mounting. The 5/8 diameter stainless steel balls overall travel stroke of 6.2mm allows for only 3mm operating stroke. Operating force is 400-500g. Lead wires are #22 and 25 long.
Potter Electric Signal - 4430006 - Features
- Includes 10
- Hardened stainless steeel ball
- 3mm pre-travel stroke
- Available in SPST or SPDT
Specifications
Specifications
Potter Electric Signal - 4430006 - Specifications
| Contact | Terminals |
|---|---|
| Contact Type | Form A N.O. |
| Operating Stroke | 5” |
| Contact Rating | 10VA |
| Contact Type | Form A N.O. |
| Max. Carry Current | 1.0 Amp |
| Max. Switching Current | 4 Amp |
| Breakdown Voltage | 200VDC |
| Operating Force | 400-500g |
| Pre-Travel Stroke | 3mm ± 1mm |
| Type | Specialty |
| UNSPSC Code | 46171600 |
