Potter Electric Signal 5330025 | Neoprene Gasket for WLS Water Leve...
Description
Description

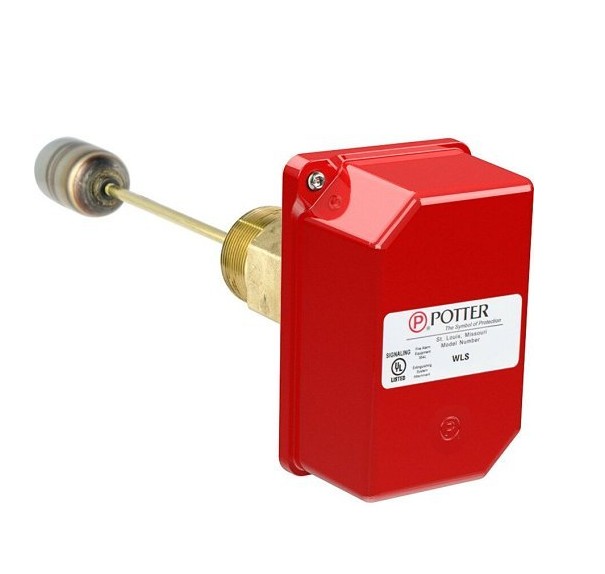

The Model WLS Water Level Switch is a float operated device forsupervising water level in a sprinkler supply gravity or pressure tank.The Model WLS has a bushing with 1 1/2” American Standard PipeThreads for mounting in steel tanks. A 11/2” NPT x 2” NPT adapterbushing is available for mounting in existing 2” steel flanges. Anoptional bushing adapter with a buttress thread is available for mountingin wooden tanks.The unit is capable of detecting the level of water before a 3” (7,6cm)rise and/or a 3” (7,6cm) fall in the water level in a pressure tank, asrequired for NFPA 72.The cover is a weather/UV/flame resistant high impact compositeplastic and is held in place with two tamper resistant screws (provided),which require a special key for removal.
Potter Electric Signal - 5330025 - Features
- NEMA 4
- Suitable for use on pressure or gravity switches
- Mounts to wood or steel tanks
- Product includes a 5 year warranty
Specifications
Specifications
Potter Electric Signal - 5330025 - Specifications
| Dimensions | Housing - 5.56”H x 3.50”W x 2.56”D; 14,1cm H x 8,9cm W x 6,5cm. See Fig. 1 |
|---|---|
| Weight | 3.25 lb / 1.47 Kg |
| Cover | Weather/UV/Flame Resistant High Impact Composite |
| Base | Steel zinc plated |
| Contacts | Two sets SPDT (Form C) |
| Maximum Pressure | 175 PSI (12,1 BAR) |
| Device Type | Sprinkler |
| UNSPSC Code | 46171600 |
