Potter Electric Signal EVAX 25/4Z | Voice Evacuation System

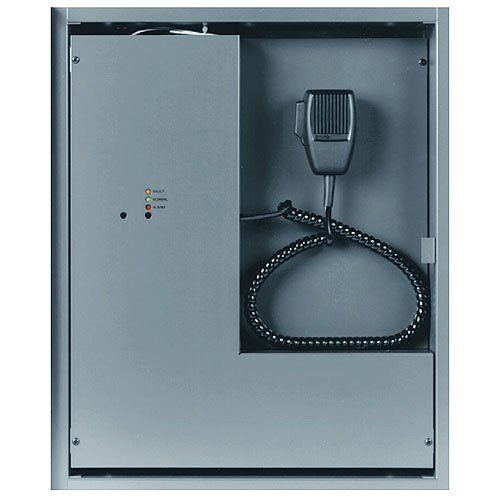

The EVAX 25 operates with any Fire Alarm Control Panel (FACP), and provides 25 Watts of speaker power. The EVAX 25 includes all necessary features to provide an effective voice evacuation system.With the addition of zone splitters, remote microphone panels, and expander modules, the EVAX 25 can be custom configured to satisfy the needs of most applications. The EVAX 25 has its own power supply and battery charger. Panel must be wired with 120 VAC and standby batteries connected. A digital message repeater (DMR) is built into the EVAX 25.The selection of alarm tone and automatic message repeats, as well as the 6 Hour delay of the AC power failure reporting feature are all field configurable. The paging microphone is an integral component.Removal of the microphone from the panel will cause a "Trouble" condition which will be reported locally, as well as through the FACP. The EVAX 25 is housed in an attractive surface or semi-flush mounted backbox, with a hinged and key locked door.
