Description

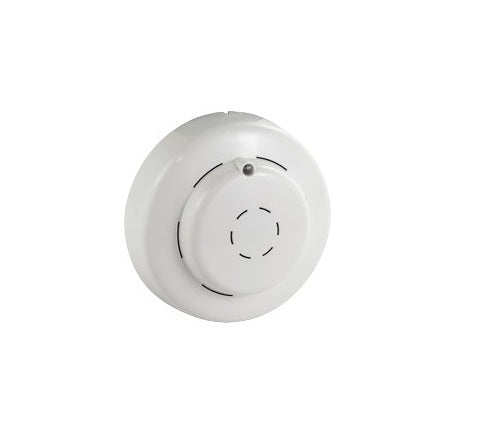

Potter Electric Signal PAD 100-CD | Carbon-Monoxide Detector

The PAD100-CD is an Analog Addressable carbon monoxide (CO) sensor compatible with any fire alarm control panel that has the Potter Addressable Device (PAD) protocol. The CO sensing portion utilizes a proven electrochemical sensor for accurate detection of CO gas for life safety applications. The sensor and base (not included) are made of a durable plastic in an off white to blend in with the ceiling.

Potter Electric Signal - PAD 100-CD - Features

Carbon Monoxide detection device compliant with UL 2075
8 year lifespan with built in end of life indication
Low profile
Walk Test mode allows for fast easy validation of sensor operation
Reliable detection technology
LED alarm Indicator
UUKL Listed for Smoke Control

Specifications

Potter Electric Signal - PAD 100-CD - Specifications

Operating Voltage	24 VDC
Detector Current Draw	300 µa
alarm indicator	1 LED
alarm set-point range	70 ppm, 150 ppm, 400 ppm
Installation temperature range	32 to 120 °F / 0 to 49 °C
Start-up time	Max. 1 sec.
Maximum number of addresses per loop	127
Color	eggshell White
Weight (without base)	92g (3.25oz)
Height:	1.43 in (36mm)
Diameter	3.93 inches (100mm)
UNSPSC Code	46171600

Documents and Downloads

Potter Electric Signal PAD 100-CD Data Sheet
