Brand: Potter Electric Signal - Usa
|
SKU:
1017147

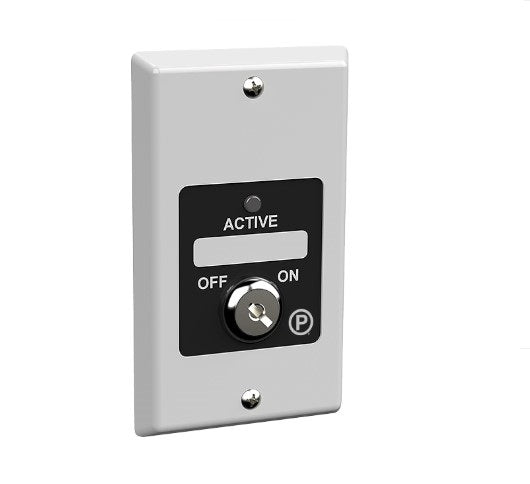

Potter Electric Signal PAD 100-LEDK | Addressable LED with Key Switch
Regular price
$212.33
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Potter Electric Signal PAD 100-LEDK | Addressable LED with Key Switch
Regular price
$212.33
Unit price
Brand: Potter Electric Signal - Usa
|
SKU:
1017147
Regular price
$212.33
Unit price
Description
Description
Potter Electric Signal PAD 100-LEDK | Addressable LED with Key Switch
Potter Electric Signal - PAD 100-LEDK - Features
- addressable LeD and key switch
- Key matches the fire alarm control panels
- Compatible with Ipa Series panels
- Mounts in a single gang box
- SLC Class a, Class X & Class B
- all wiring terminals accept 22 to 12 aWg
- UUKL Listed for Smoke Control
Specifications
Specifications
Potter Electric Signal - PAD 100-LEDK - Specifications
| Operating Voltage | 24.0V |
|---|---|
| Max SLC Standby Current | 200?A |
| Max SLC alarm Current | 200?A |
| environmental Limitations | 32°F - 120°F (0° - 49°C) Indoor Only |
| Operating Humidity Range | 0 to 93% (non-condensing) |
| Max no. of Module per Loop | 127 units |
| Dimensions | 4.75” (187mm) H x 2.75” (108mm)W x 1” (40mm)D |
| Mounting Options | Single gang box or potter p32-BB/DBB |
| Shipping Weight | 0.65 lbs |
| UNSPSC Code | 46171600 |
