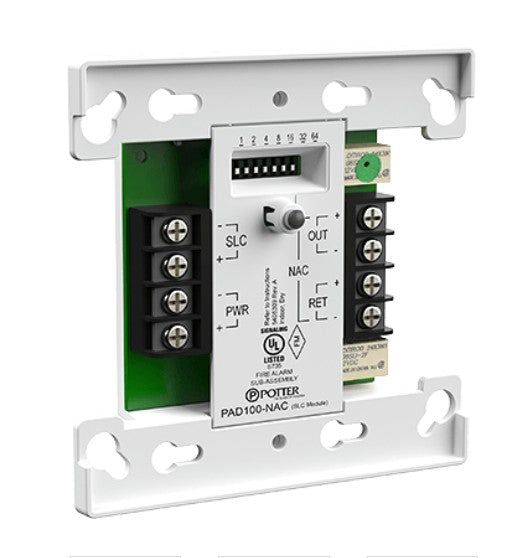

Potter Electric Signal PAD100-NAC | Notification Appliance Circuit
Description
Description
The PAD100-NAC module uses one (1) address on an SLC Loop. The module provides a programmable source of power to supervise and control one (1) Class B or Class A Notification Appliance or one (1) Class B Releasing Circuit. The module requires and supervises a 24 VDC auxiliary power connection. The PAD100-NAC includes one red LED to indicate the module's status. In normal condition, the LED flashes when the device is being polled by the control panel.
Potter Electric Signal - PAD100-NAC - Features
- Monitored output module that provides an additional supervised output
- Can be used as either a NaC or Releasing Output
- NaC can be wired Class a or Class B
- Monitors presence of 24 VDC aux power
- SLC Class a, Class X & Class B
- Mounts in a standard 4” or double gang box
- Wiring terminals accessible when mounted in box
- All wiring terminals accept 22 to 12 AWG
- product includes a 5 year warranty
- UUKL Listed for Smoke Control
Specifications
Specifications
Potter Electric Signal - PAD100-NAC - Specifications
| Operating Voltage | 24.0V |
|---|---|
| Max SLC Standby Current | 200?A |
| Operating Temperature Range | 32 to 120ºF (0 to 49ºC) |
| Operating Humidity Range | 0 to 93% (non-condensing) |
| Max no. of Module per Loop | 127 units |
| Dimensions | 4.17” (106mm)L × 4.17” (106mm)W × 1.14” (29mm)D |
| Weight | 0.6 lbs |
