Potter Electric Signal PAD100-SIM | Single Input Module
Regular price
$93.99
Unit price
Brand: Potter Electric Signal - Usa
|
SKU:
954516
Regular price
$93.99
Unit price
Description
Description

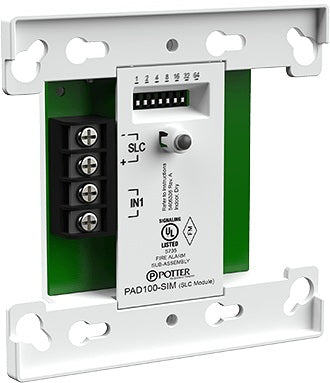

Potter Electric Signal PAD100-SIM | Single Input Module
The PAD100-SIM uses one (1) SLC loop addresses when monitoring one (1) Class B circuit. The module mounts on either a 4" square or double gang box. The module is capable of monitoring one (1) Class B circuit. The PAD100-SIM includes one red LED to indicate the module's status. In normal condition, the LED flashes when the device is being polled by the control panel. When the input is activated, the LED will flash at a fast rate.
Potter Electric Signal - PAD100-SIM - Features
- One (1) Class B monitoring input
- SLC Class , Class X & Class B
- Mounts in a standard 4” or double gang box
- Wiring terminals accessible when mounted in box
- All wiring terminals accept 22 to 12 AWG
- UUKL Listed for Smoke Control
Specifications
Specifications
Potter Electric Signal - PAD100-SIM - Specifications
| Operating Voltage | 24.0V |
|---|---|
| Max SLC Standby Current | 240?A |
| Max SLC larm Current | 240?A |
| Max Wiring Resistance of IDC | 100 ? |
| EOL Resistor | 5.1K ? |
| Max no. of Module per Loop | 127 units |
| UNSPSC Code | 46171600 |
