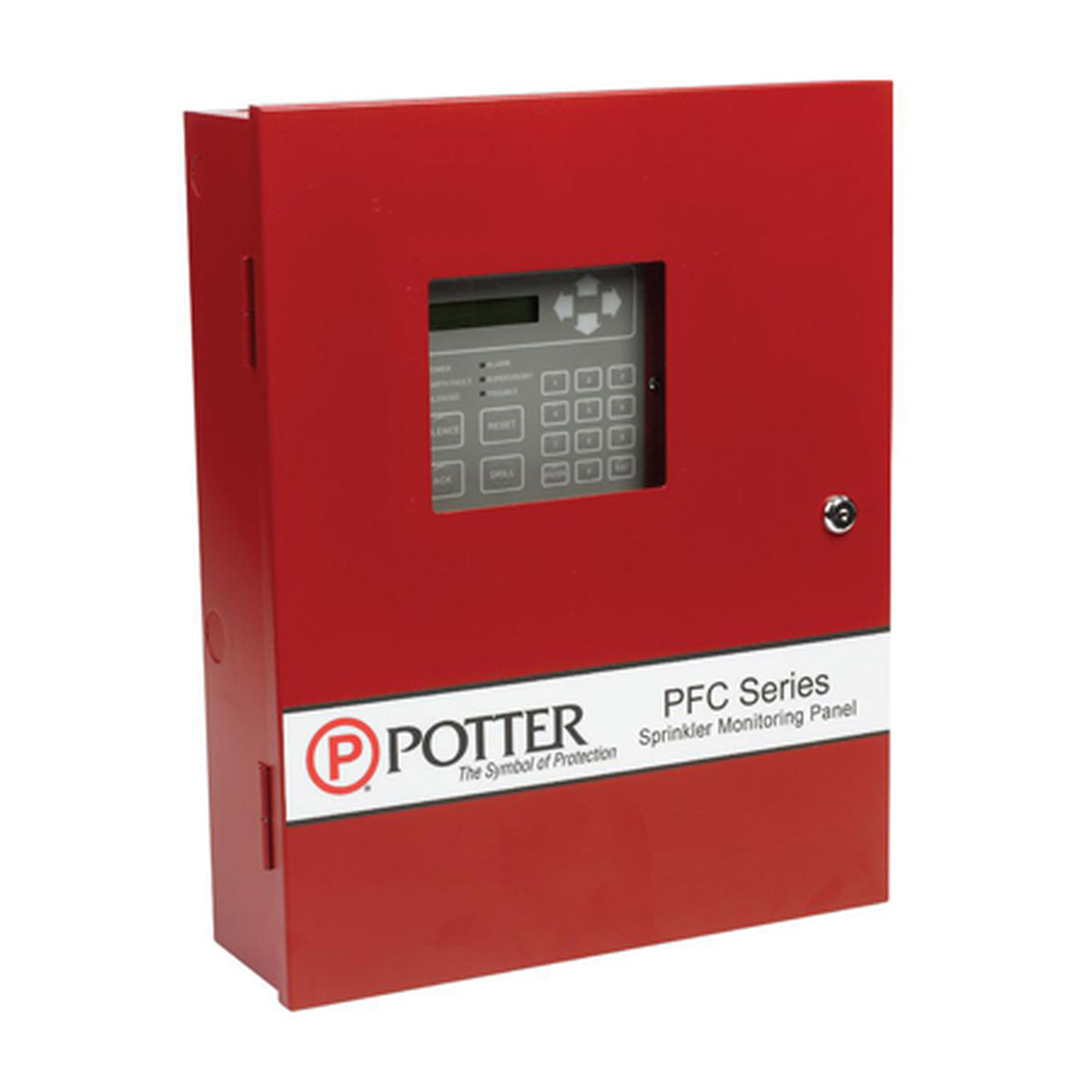

Potter Electric Signal PFC-6006-R | Conventional Fire Panel For Small Or Fire Sprinkler Monitoring Panel Systems, Red

The PFC-6006 is a listed conventional small fire system that is perfect for monitoring a fire sprinkler system or other similar small fire system. Class A or Class B water flow inputs can be chosen for the first input, and a menu of options, including two-wire smoke detection, can be used to choose the other five zones. The panel's 1.0 amp power supply runs the panel, recharges the batteries, and provides 0.5 amps of auxiliary power and 0.5 amps to a notification appliance circuit. Programmable continuous or resettable auxiliary power is available. A lexan window allows you to see the state of the system, and the control panel is in a metal cabinet that is key-locked. The printed circuit assembly is placed for easy removal and installation, making it possible to install the cabinet with the least amount of work. At most two 12VDC, 18 AH batteries can be stored in the cabinet.
