Potter Electric Signal PVX-150 | 50 Watt Voice Evacuation System
Description
Description

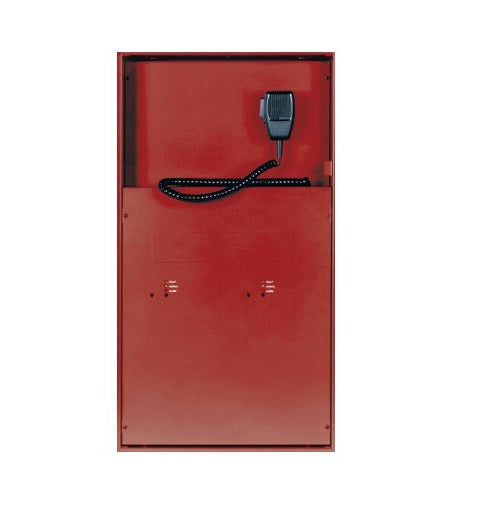

The PVX-150 panel provides 150W of speaker power. Speaker zones can be configured for general alarm or alarm by zone operation as required. Digital message repeater, microphone, 120 VAC power supply and battery charger are all built in. PVX Series voice evacuation panels can be configured for Churches, Restaurants, Movie Theaters, Auditoriums and High Rise buildings. The paging microphone is an integral component. Removal of the microphone will cause a "Trouble" condition which will be reported locally, as well as through the FACP. The PVX-150 is housed in a surface or semi-flush mounted backbox with a hinged and key locked door.
Potter Electric Signal - PVX-150 - Features
- Clean Dead-front Construction
- Digitally Recorded Automatic Evacuation Message (Up to 20 Minutes of Message Capacity)
- 50/100 Watt Bullet-Proof Amplifier
- 25 or 70 VRMS Field Selectable
- Class A/B Speaker Circuit
- 120 VAC Power Supply and Battery Charger
- Live Microphone Override of Message and Tone
- Analog Addressable Compatible
- High Reliability, No Maintenance, Fully Supervised
- Easy Installation and Operation
Specifications
Specifications
Potter Electric Signal - PVX-150 - Specifications
| Primary Power | 120VAC @0.8A |
|---|---|
| 24VDC Battery Power | 0.15a Standby .80A Alarm |
| Output | 50 Watts @ 25/70 VRMS |
| Primary Power | 120VAC @0.8A |
| 24VDC Battery Power | 0.16a Standby 1.1A Alarm |
| Output | 100 Watts @ 25/70 VRMS |
| Backbox Dimensions (WxHxD) | 14.5 x 27 x 4” |
| Color | Red (standard) Charcoal Grey (optional) |
