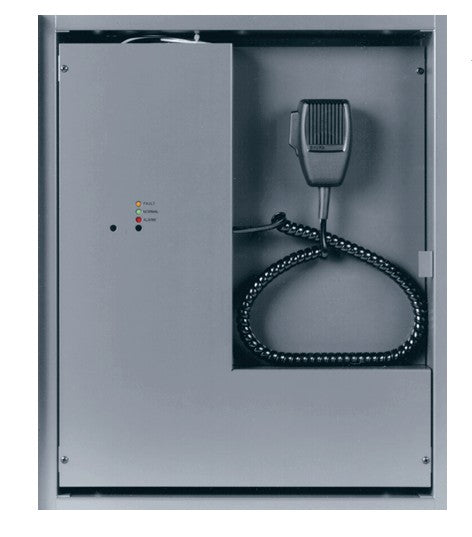

Potter Electric Signal PVX-25/4Z | Voice Evacuation System

The pVX-25 operates with any Fire alarm Control panel (FaCp) and provides 25 Watts of speaker power. The pVX-25 has its own power supply and battery charger. The panel must be wired with 120 VaC and standby batteries connected. The pVX-25 is housed in a surface or semi-flush mounted backbox with a hinged and key locked door. a digital message repeater (DMR) is built into the pVX-25. The selector of alarm tone and automatic message repeats, as well as the 6 hour delay of the AC power failure reporting feature, is all field configurable. The paging microphone is an integral component. Removal of the microphone from the panel will cause a “Trouble” condition which will be reported locally, as well as through the FaCp. The pVX-25 includes all necessary features to provide an effective voice evacuation system. With the addition of zone splitters, selection switches/inputs, remote microphone panels, and expander modules, the PVX-25 can be custom configured to satisfy the needs of most applications.
