Potter Electric Signal RM-1000ECSTL | Remote Microphone Allows Theo...
Description
Description

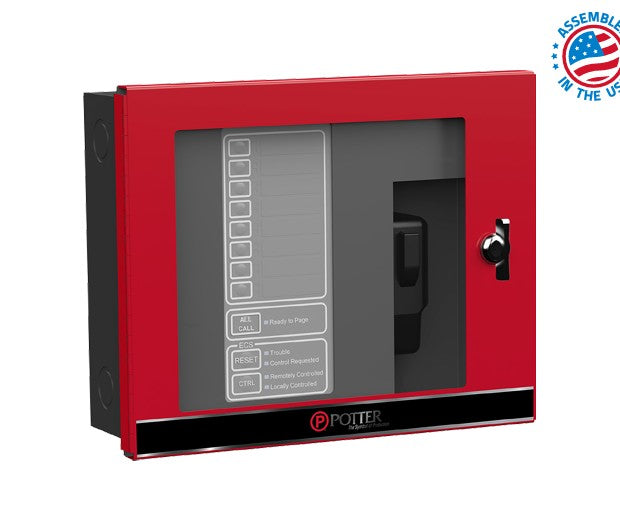

The RM-1000ECSTL remote microphone allows the operator to page and activate ECS messages to desired speaker circuits from a remote area. The remote microphone is equipped with an SB-8 voice user interface which provides 8 programmable soft keys. It is enclosed in a sheet metal enclosure and is equipped with a microphone. The RM1000ECSTL is a PLink device and communicates with the control panel via the 4-wire RS-485 connection and distributes paging audio through the V-Link 1 and V-Link 2 audio riser. A maximum of 30 RM-1000ECSTL can be connected to a voice system. The remote microphone provides LED indication for Power and Ready to Page. A NCE-1000 or NCF-1000 network card may be mounted in the remote microphone enclosure to network panels.
Potter Electric Signal - RM-1000ECSTL - Features
- Remote microphone with eight (8) soft keys
- Equipped with microphone
- Remote microphone prioritization using Potter Fire Programmer
- P-Link Device - 30 remote microphones per panel
- Status and Trouble LED indicators
- Network paging supplies largescale environments with structured paging and live streaming voice management using NCE-1000 or NCF-1000 network cards
Specifications
Specifications
Potter Electric Signal - RM-1000ECSTL - Specifications
| Standby Current | 34 mA |
|---|---|
| Alarm Current | 55 mA |
| Operating Temperature Range | 32° to 120° F (0° to 49°C |
| Operating Humidity Range | 10% to 93% (non-condensing) |
