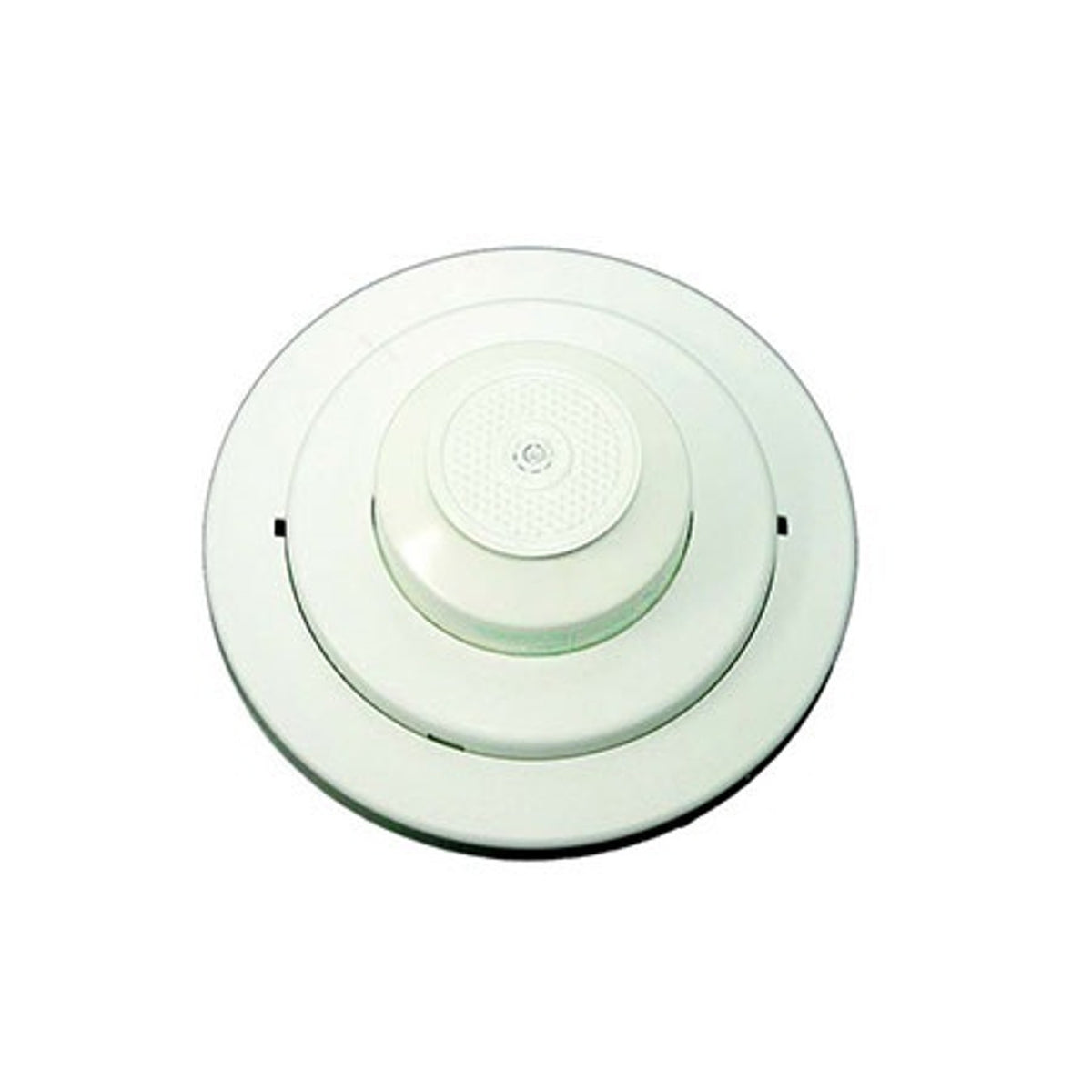

Potter Electric Signal - Usa 1000140 | Cr-135W Heat Detector, Fixed - Heat Detector

Potter Electric Signal - Usa - 1000140 - Additional Information

• The Thermoflex product group includes standard detectors as well as detectors for hazardous locations and moisture-proof applications. Each detector is available in single or multiple circuits with open and/or closed contact configurations. The prefix CR in the model number denotes rate-of-rise and fixed temperature operation. The prefix CF denotes fixed temperature only. The standard fixed temperature settings are 135™F and 200F. Units set at 165F and 285F are also available.
• The CR135W is a combination rate-of-rise and fixed temperature detector. The fixed temperature portion releases when the ceiling temperature reaches 135F (93C) The spacing parameters for the rate-of-rise is 70 (22 m).
• CR-135W - Fixed/Rate of Rise indoor
• Contact Ratings:
• 3 Amps at 125 VAC
• 1Amp at 28 VDC
• 0.3 Amps at 125 VDC
• 0.1 Amps at 250 VDC
• Dimensions - Diameter - 5.25 (13.4cm) Height - 2 (4.85cm)
• Weight - 0.41 lbs. (330 grams)
• UL and ULC Listed

Potter Electric Signal - Usa - 1000140 - Product Categories

• Security
• Fire Alarm Systems
• Smoke and Heat Detection

Potter Electric Signal - Usa - 1000140 - Specifications

• Potter Electric Signal - Usa 1000140 Specification Sheet
• Potter Electric Signal - Usa 1000140 Datasheet
