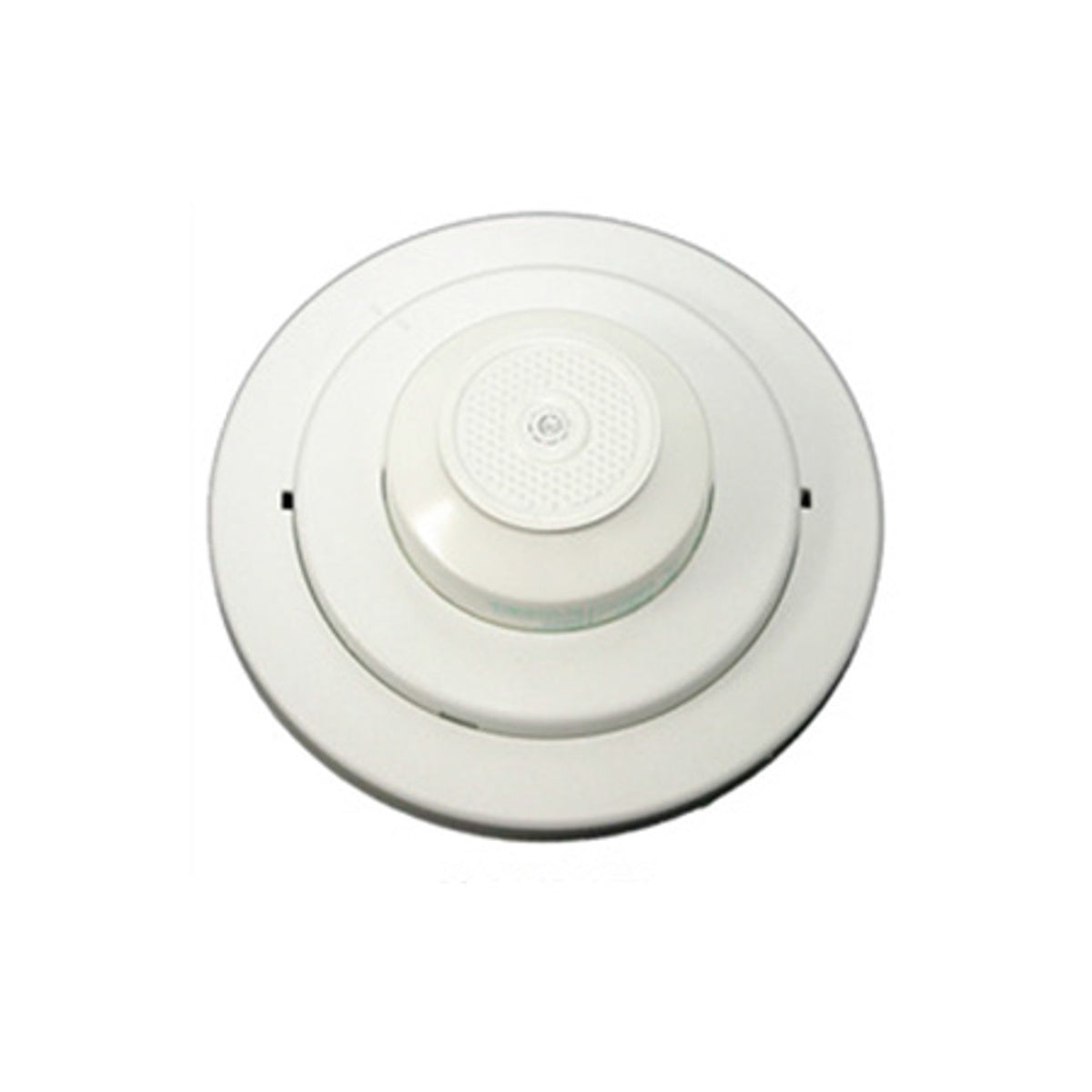

Potter Electric Signal - Usa 1000144 | Cr-135Cw Heat Detectors 135F - Smoke Detector

Potter Electric Signal - Usa - 1000144 - Additional Information

• Low profile design
• Dual action (rate of rise/fixed temperature) or fixed temperature only
• White plastic housing
• Up to 70' inter detector spacing
• Open or closed contact versions available
• Available in single or multiple circuit versions
• Product includes a 5 year warranty
• The CR Series detectors are combination Rate-of-Rise and Fixed Temperature. The Rate-of-Rise function allows the detector to operate when the temperature at the detector increases at a rate of 15°F per minute. The Fixed Temperature portion will cause the detector to operate when it reaches the applicable temperature. The Rate-of-Rise portion of the detector is restorable; however the Fixed Temperature portion is non-restorable.
• Specifications
• Dimensions: 5.25 x 2
• Device Weight: 0.41 lbs (0.19 kg)
• Shipping Weight: 0.6 lbs (0.3 kg)
• Materials: Plastic
• Contact Ratings
• 3 Amps at 125VAC
• 1 Amp at 28VDC
• 0.3 Amps at 125VDC
• Environmental Limitations
• -20°F (-30°C) - 250°F (120°C)
• Exclusive of Operating Temperature
• Mounting: 4 Standard Octagon Box

Potter Electric Signal - Usa - 1000144 - Product Categories

• Security
• Fire Alarm Systems
• Smoke and Heat Detection

Potter Electric Signal - Usa - 1000144 - Specifications

• Potter Electric Signal - Usa 1000144 Datasheet
