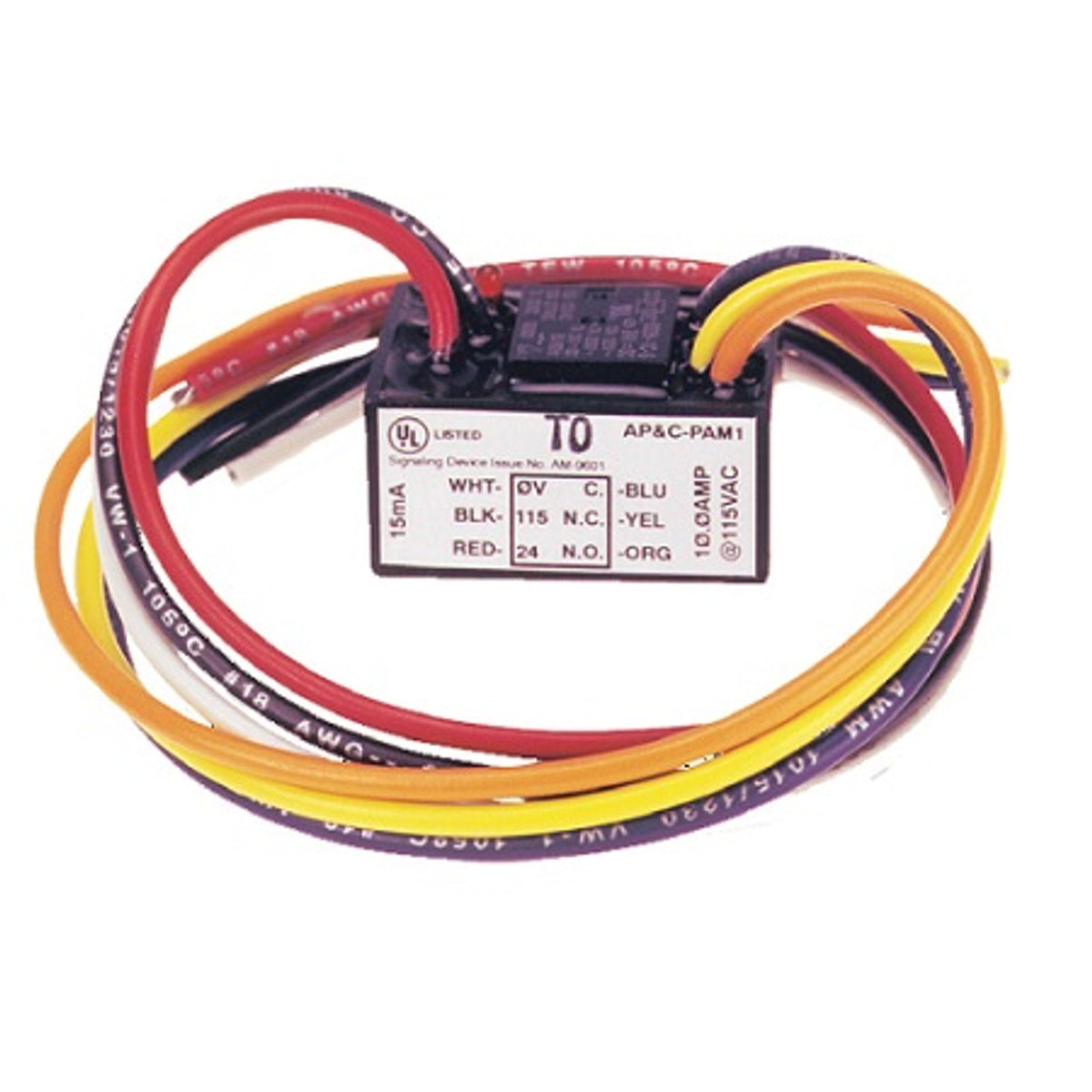

Potter Electric Signal - Usa 1000262 | Pam-1 24Vdc/24Vac/115 Relay - Module

Potter Electric Signal - Usa - 1000262 - Additional Information

• Single SPDT relay with LED
• Double-sided adhesive tape
• Mounting screw
• 12" leads
• 6 wire nuts
• The PAM-1 Relay is an encapulated 24VDC multi-voltage device providing 10.0 Amp form C contacts. The relay may be energized by one of three input voltages: 24 VAC, 24 VDC, or 115 VAC. A red LED is provided which, when illuminated, indicates the relay coil is energized.
• The PAM-SD may be mounted by using the double-sided adhesive tape, the self-drilling screw, or loosely placed in an electrical backbox.
• These devices are ideal for applications where remote relays are required for control or status feedback. They are suitable for use with HVAC, temperature control, fi re alarm, security, energy management, and lighting control systems.
• Power Requirements - Per position - 0.015 Amps @ 24VDC, 24VAC, 115VAC
• Relay - UL recognized SPDT
• Contact Rating:
• 10 Amps @ 115VAC
• 7 Amps @ 28VDC
• 250 Microamps @ 5VDC
• Ambient Temperature - 32°F to 120°F (0°C to 49°C)
• Approvals - UL Listed
• Dimensions:
• 1.5"H x 1" W x 0.875" D
• 12" (304.8mm) 18 ga. wire leads
